Rugged, Sleek and Simple
Carbide Series 270R Window is compact and engineered for building high-performance yet minimalist systems
Look Hot. Run Cold.
Take advantage of Direct Airflow Cooling as well as ample room for radiators in the front, top and rear. Keep your rig running cool and quiet with 270R’s enormous cooling potentia
Package contents

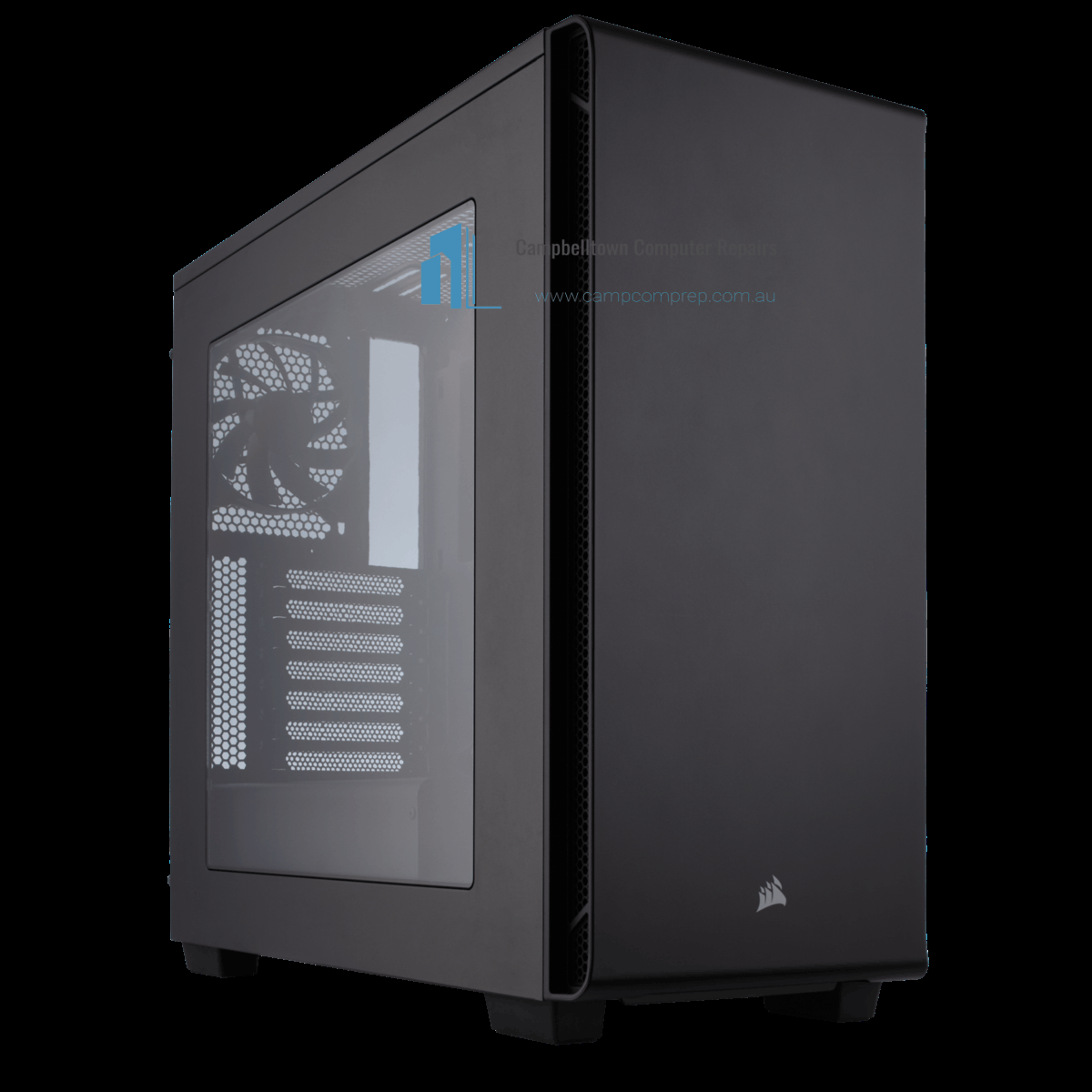

Carbide Series 270R Windowed ATX Mid-Tower Case
Accessory kit
Warranty and Support Information
Compatibility
Motherboard: ATX (Up to 272mm), MicroATX, Mini ITX
Technical specifications
Dimensions (L x W x H): 509 x 210 x 460mm
Maximum GPU Length: 370mm
Maximum CPU Cooler Height: 170mm
Maximum PSU Length: 225mm
Expansion Slots: 7
3.5" Hard Drive Bays: 2
2.5" Drive Bays: 2
Cooling Layout:
Front: (x3) 120mm or (x2) 140mm
(x1) 120mm red LED included
Top: (x2) 120/140mm
Rear: (x1) 120mm (included)
Radiator Compatibility:
360mm: Front only
280mm: Front only
240mm: Front or Top
120mm: Front, Top, or Rear
Dust filters for front and PSU intakes
Windowed Side Panel
Front I/O Panel includes: (x2) USB 3.0 port, Headphone and Microphone jacks, Power on and Reset buttons
