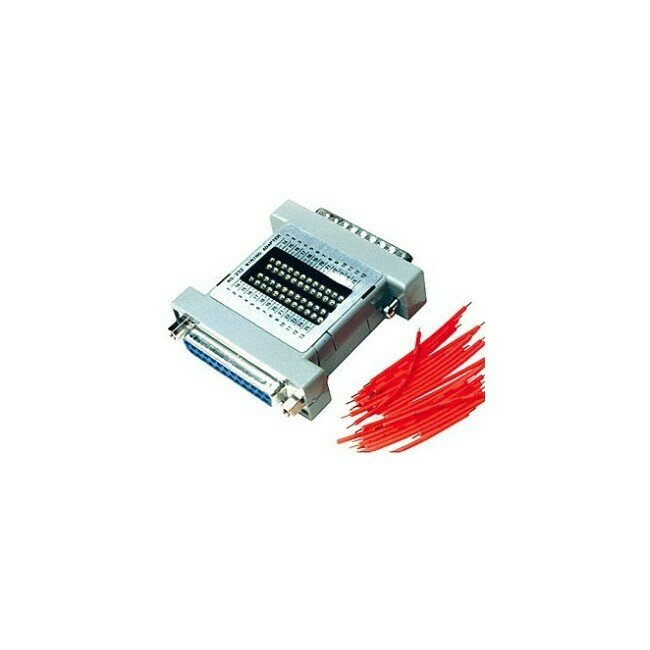

DB25 Male to Female. The RS232 mini patch box is used to make custom RS232 interfaces. It consists of a small board with a connector on each end. All 25 pins of each connector go to the 25 solder pads. By custom wiring these pads many different interfaces can be built: null modems, pin reversers, etc.
Also a cable can be connected to tap signals from theRS232 line.
FEATURES:
For custom wiring of RS232 interface.
25 pin plug to 25 pin socket with 48 re-usable push in spring loaded connectors.
Open access for instant re-configuration of pins 2 to 25 (pin1 protective ground).
This unit is designed for on-the-fly configuration.
