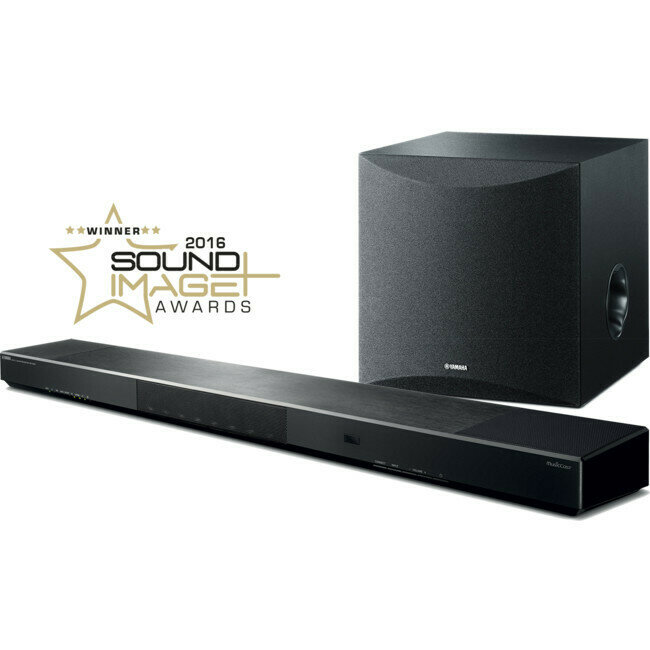

Amazing surround sound and multi-room performance from a single bar and subwoofer.
Low-profile BAR with Subwoofer featuring Yamaha's exclusive YSP technology for real 5.1 channel surround sound.
Also features MusicCast which enables sharing of music sources anywhere in the home with other MusicCast products.
HDCP2.2 compliant HDMI supports 4K Ultra HD input.
MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it's completely up to you.
Control it, all from one app, designed to be intuitive, quick and simple to use.
Use a soundbar, a wireless speaker, an AV Receiver, HiFi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on.
All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.
MusicCast employs a high performance wireless networkto deliver music and audio enjoyment.
It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home.
It can also share the music from external devices such as a TV or BD player connected to the YSP-1600.
Audio content from Bluetooth-connected smartphones ortablets can also be streamed to MusicCast devices in multiple rooms.
Yamaha's unique Digital Sound Projector technology achieves actual (not virtual) surround sound in your home theatre.
Eight 2.8cm (1-1/8&) high quality array speakers create beams of sound that are precisely time- and direction controlled using digital signal processing.
The sound reflects off the walls, enveloping you in true surround sound.
Beam positions can be adjusted using the remote control or a smartphone app, allowing many people to enjoy the realistic, expansive sound.
The slim body makes it extremely easy to position theunit in front of a TV, ensuring that the screen is not blocked.
The 76W digital amplifier, eight beam speakers and two built-in subwoofers produce truly high quality surround sound from your TV, smartphone or other source.
Two upward-facing powerful 8.5cm (3-1/4&) subwoofers are built into the ends of the unit.
Combined with the bass reflex port and wide, large volume body, the SRT-1600 will deliver clear, deep and expansive bass to enhance the enjoyment of movies and music.
Yamaha’s ultra-sophisticated Cinema DSP technology creates thrillingly realistic soundscapes in any room.
You can use the app to select five different programmmes: Movie, Music, Sports, Game or TV programmes.
Clear Voice raises the level of dialogue and narrations while maintaining overall sound quality.
Movies and TV shows, sports commentary and news broadcasts are more clearly audible.
The Subwoofer Out jack lets you connect an additionalsubwoofer to enjoy even more powerful bass sound.
The YSP-1600 is compatible with a free controller appfor iOS and Android.
The easy-to-see and easy-to-use operating screen usesicons to let you easily perform a variety of operations while watching your smartphone or tablet screen.
You can also make detailed settings for the beam sound output.
Enjoy music from your smartphone or tablet wirelesslyusing a Bluetooth connection.
You can also use the convenient AirPlay function for wireless music streaming from iPhone or iPads.
In addition, a Bluetooth standby mode provides the convenience of having the YSP-1600 turn on and off automatically.
The YSP-1600 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever.
You can stream music from the YSP-1600 to Bluetooth headphones for private listening or to Bluetooth speakers.
The YSP-1600 completely supports the latest HDMI standards.
Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definitionvideo quality of 4K without degradation.
It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission.
This compact subwoofer incorporates a number of Yamaha advanced, high-performance bass technologies, such as Twisted Flare Port, Advanced YST II (Yamaha Active Servo Technology II) with discrete amp circuitry and a high-quality 8" woofer unit.
The resulting bass response is powerfully rich and impactful.
Developed by Yamaha, the Advanced YST II (Yamaha Active Servo Technology II) combines negative-impedance and constant-current principles to drive the speaker cone with even tighter control than the previous version.
Using Advanced Negative Impedance Converter (ANIC) circuits, this system dynamically optimizes effective speaker impedance to maintain excellent linearity.
This means more stable and accurate low range response, not to mention higher sound quality
The new Twisted Flare Port takes advantage of extensive subwoofer development experience.
The gently twisting flared shape creates a smooth flow ofair around the edge of the port versus the turbulent air flow around a conventional port.
This reduces extraneous noise not present in the originalinput signal and provides clear, accurate low frequency reproduction.
From special effect sounds in movies to the atmosphere of a live venue, you hear bass that is clear, tight and realistic.
General | Drivers | 2.8 cm (1-1/8”) x 8 beam drivers |
---|---|---|
Output Channel | 5.1-channel | |
Output Power | 80 W total power: 2.5 W x 8 beam drivers + 60 W (30 W x 2) subwoofer | |
Power Consumption | 25 W | |
Standby Power Consumption | 0.4 W (HDMI Control OFF, Network Standby OFF), 1.8 W ( Network standby ON, Wi-Fi connection) | |
Subwoofer | Dual 8.5 cm (3-1/4”) subwoofers | |
Dimensions (W x H x D) | 1000 x 65 x 130 mm ; 39-3/8” x 2-1/2” x 5-1/8” (without antenna) | |
Weight | 4.7 kg; 10.4 lbs. | |
Input / Output | HDMI | 1 in, 1 out |
Digital Optical | 1 in | |
Analog Audio | 1 in (Stereo mini jack) | |
Subwoofer output | Yes | |
HDMI | 4K Pass-through | Yes (60p) |
3D Pass-through | Yes | |
ARC | Yes | |
CEC | Yes | |
Auto Lip-Sync | Yes | |
Sound Technology | Surround Technology | Digital Sound Projector |
CINEMA DSP Movie | 1 | |
CINEMA DSP Music | 1 | |
CINEMA DSP Entertainment | 5 (Movie, Music, Sports, Game, TV programmes) | |
Audio Formats | Dolby Digital | Yes |
Dolby Pro Logic II | Yes | |
DTS | Yes | |
LPCM | Yes | |
Connectivity | Wireless Music Streaming | Yes (with Bluetooth, Wi-Fi) |
Wi-Fi | Yes (with Wireless Direct) | |
AirPlay | Yes | |
Bluetooth Version/Profile | Ver. 2.1 + EDR / A2DP, AVRCP* ; (Audio Codec) SBC, AAC* (*Receiving Only) | |
Bluetooth Maximum Communication Range | 10 m / 33 ft. 10in. (without interference) | |
Ethernet | Yes | |
Other Features | App Control | Yes (MusicCast CONTROLLER, HOME THEATER CONTROLLER [WLAN]) |
TV Remote Repeater | Yes |
Type | Advanced Yamaha Active Servo Technology | |
---|---|---|
Driver | 20cm cone | |
Dynamic Power | 100 W | |
Frequency Response | 28-200 Hz | |
Advanced YST |
Yes |
|
Twisted Flare Port | Yes | |
Dimensions (W x H x D) | 291 x 292 x 341 mm | |
Weight | 8.48 kg |
