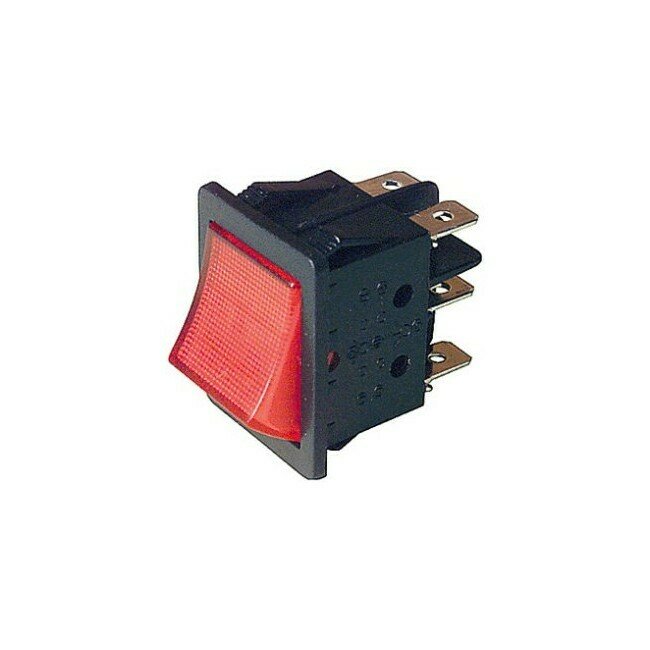

A full illuminated DPDT heavy duty rocker switch for panel mounting into equipment and control panels.
Electrical contacts are rated to 15A @ 250V AC. Switch is fitted with a 240V AC red neon which illuminates the entire switch actuator when turned on. Suits panels up to 3mm thickness.
Contact rating: 15A @ 250V ac
Neon: Red, 240V ac
Electrical life: 10,000 cycles
Panel thickness: 3mm
Mechanical life: 30,000 cycles
Contact resistance: <20mO
Insulation resistance: >1000MO
Dielectric strength: >1500V ac 1 minute
*Specifications are subject to change without notic
