The DE01ERK DVI Extender allows transmission of DVI signals up to a distance of 70m over CAT5 UTP Cable. This allows the user to connect devices using thin, long, flexible, cost effective CAT5e/6 cables rather than short, bulky and expensive DVI Cables. With he embedded EDID in theTransmitting adaptor, the PC will still send the digital video even when the monitor is disconnected or off. The usercan then relocate the monitor without the need to reboot thesystem or source device. This means set-up is a breeze.
Resolution
Distance
1024x768
70
1280x1024
50
1440x900
50
1600x900
50
1920x1200
50
*Transmission distance will be affected by Source & Monitor devices and cable quality

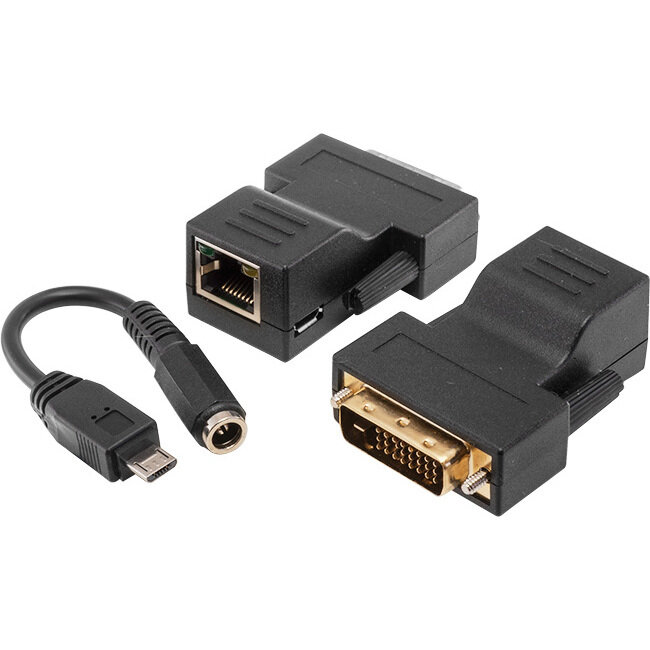

Includes DE01ET transmitter and DE01ER Receiver,
Used and supplied in pairs
Receiver gets power from Transmitter
Transmitter provides power from DVI Source, or Micro USB input when DVI Source is insufficient
Built-in LED indication
Supports resolutions up to 1920x1200
Supports up to 70m transmission of 1024x768 signals
Specifications
Video Bandwidth
1.65 Gbps ( DVI 1.1)
Resolution
Up to 1920 x 1200 @60hz
Input TMDS Video Signal
1.2 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Link Cable Distance
1024x 768@70M
1920x1200@50M
DVI Connector
DVI-D 29-pin
Link Connector
RJ-45 Shielded x1
Power Supply
none
Temperature
Operation: 0 to 55°C, Storage: -20 TO 85°C, Humidity: up to 95%
