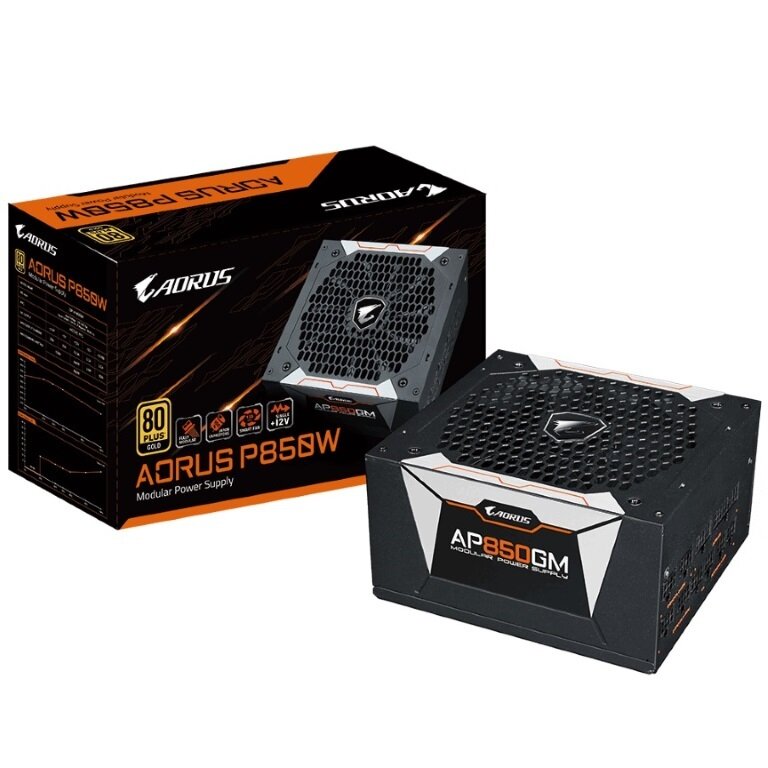

Gigabyte AP850GM AORUS 850W ATX PSU Power Supply 80+ Gold Modular >90% 135mm Fan Black Flat Cables Single +12V Rail Japanese Capacitors >100K Hrs MTBF

Features
Fully Modular Design
High quality 100% Japanese Capacitors
135mm 2 ball bearing smart fan with fan stop function
80 PLUS Gold certified: above 90% efficiency at 50% load
Single +12V rail
OCP/OTP/OVP/OPP/UVP/SCP protection

Model GP-AP850GM
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 10A
Input Frequency 47-63 Hz
Output Capacity 850W
Dimension 150 x 160 x 86mm
Fan Type 135mm Double ball bearing fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Singal 100ms ~ 150ms
Hold Up Time > 16m sec at full load (115V)
Cable Type Flat, All black
Connectors ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm
