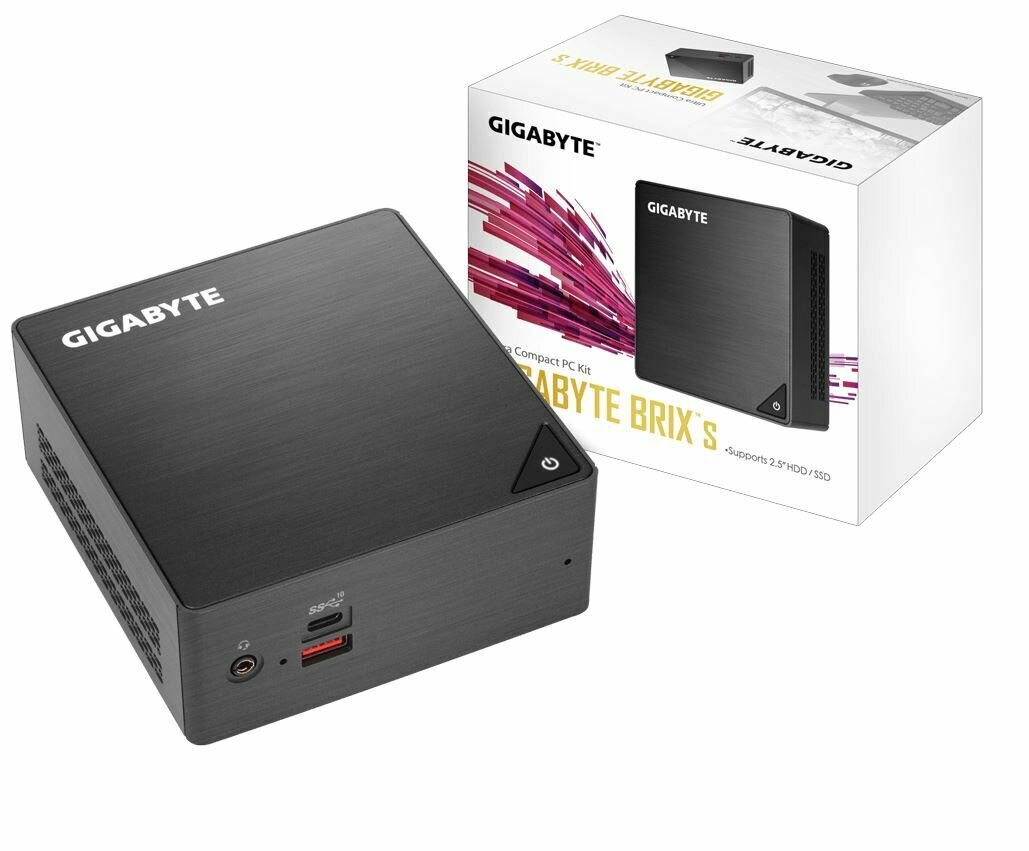

Gigabyte Brix NUC GB-BRI7H-8550 Ultra Compact Barebone Mini PC i7-8550U 0.63L M.2 SSD 2xDDR4 SODIMM HDMI mDP 4K WiFi BT 2xUSB3.1 2xUSB3.0 LAN VESA

* Product may vary based on local distribution.
Features Intel® Core™ Quad Core i7-8550U
Ultra compact PC design at only 0.63L (46.8 x 112.6 x 119.4mm)
Supports 2.5' HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x M.2 SSD (2280) slot
2 x SO-DIMM DDR4 slots
Intel® IEEE 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
HDMI plus Mini DisplayPort Outputs (Supports dual displays)
2 x USB 3.1 (1 x USB Type-Câ„¢)
2 x USB 3.0
Intel Gigabit LAN
Dual Array Microphone
Headphone Jack
VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
* Wireless module inclusion may vary based on local distribution.

Dimension
46.8 mm x 112.6 mm x 119.4 mm (1.84' x 4.43' x 4.7')
Motherboard Size
105 x 110 mm
CPU
Intel® Core™ Quad Core i7-8550U
4.0GHz / 1.8GHz
Memory
2 x SO-DIMM DDR4 slots
2400MHz
Max. 32GB
LAN
Gigabit LAN (Intel i219V)
Wifi Card
Intel® Dual Band Wireless-AC 3168
Graphics
Intel® UHD Graphics 620
Audio
Realtek ALC255
HDMI Resolution (Max.)
HDMI2.0a ws HDCP 2.2
4096 x 2304 @ 60Hz
Mini DP Resolution (Max.)
DP1.2a ws HDCP 2.2
4096 x 2304 @ 60Hz
Expansion Slots
1 x M.2 slot (2280_storage) PCIe X4 /SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O
1 x USB 3.1 type C
1 x USB3.1
1 x head phone jack with MIC
1 x Dual array Microphone
Rear I/O
1 x HDMI(2.0a)
1 x Mini DisplayPort (1.2)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Storage Supports 2.5' HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
USB3.1 Asmedia 3142
Power Supply Input: AC 100-240V Output: DC 19V 3.42A
VESA
Bracket included Supports 75 x 75 and 100 x 100 mm
Support OS WIN10 64bit
Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
