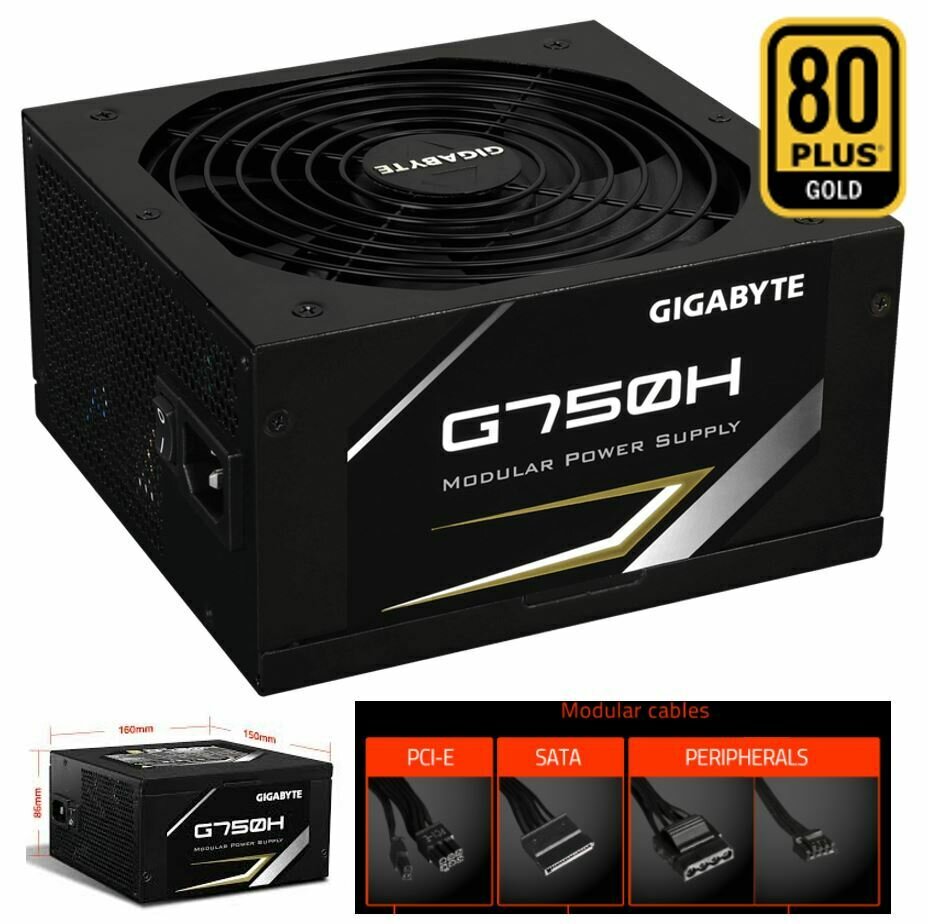

Gigabyte G750H 750W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Modular Black Flat Cables Single +12V Rail Japanese Capacitors >100K Hrs MTBF

Modular Design
High quality 100% Japanese electrolytic capacitors
140mm smart control fan
80 Plus Gold certified
Single +12V rail
Supports NVIDIA SLI / AMD CROSSFIRE
5 years warranty (Adjusted according to different regions)

Model G750H
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 10A
Input Frequency 47-63 Hz
Output Capacity 750W
Dimension D160 x W150 x H86mm
Fan Type 140mm Double ball bearing fan
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP
Regulatory CE/BSMI/EAC/TUV/FCC/CCC/RCM
Connectors MB 20+4 Pin x1
CPU 4+4 Pin x1
PCI-e 6+2 Pin x4
SATA x7
4Pin Peripheral x3
4Pin Floopy x1
Cable Type Black Flat Cables

Modular Design
The black flat cables are modular. Installing only the cables you need to increase the airflow and to improve the chassis thermal performance.

High Quality 100% Japanese Electrolytic Capacitors
All electrolytic capacitors are high quality Japanese electrolytic capacitors, to produce the efficient performance and to ensure the longer reliability.

140mm Smart Control Fan
140mm cooling fan with smart control system optimizes the noise reduction and the performance. The fan speed is adjusted according to the automatic power detection. The ball bearing fan provides longer and more stable life time.

80 Plus Gold Certified
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise.

Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for overclocking.
