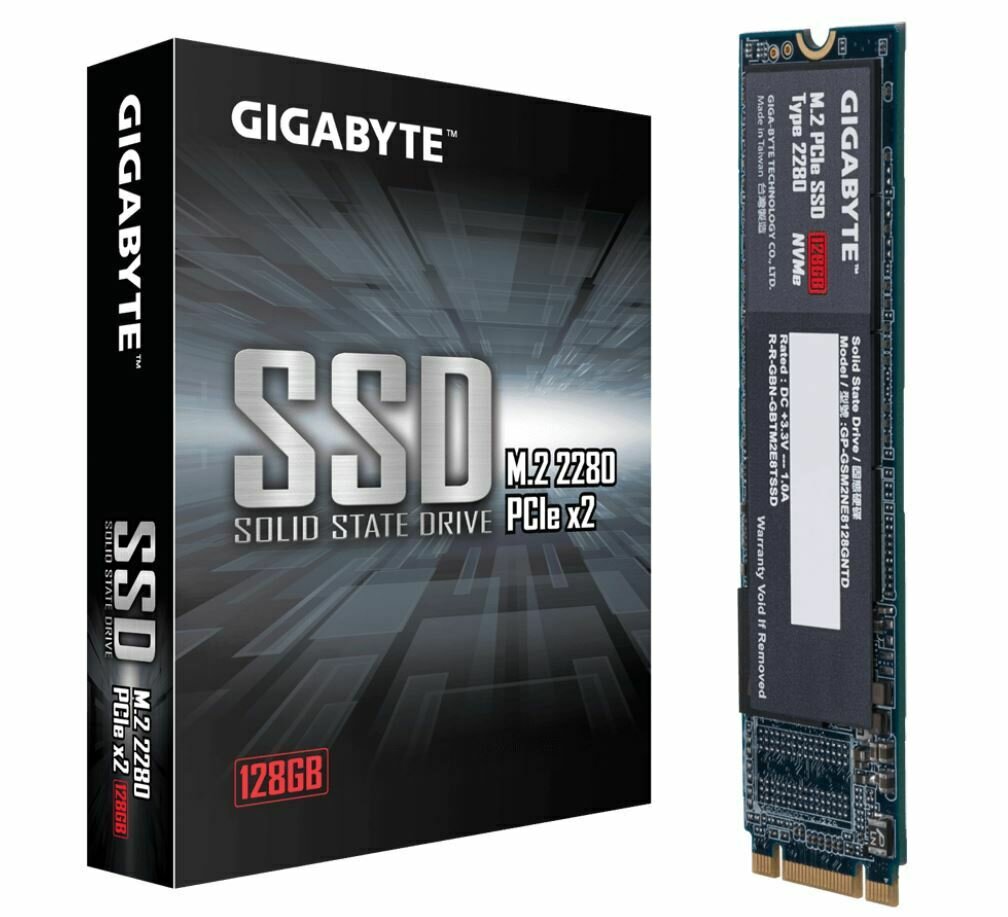

Gigabyte M.2 PCIe NVMe SSD 128GB 1100/500 MB/s 90K/100K IOPS 2280 80mm 1.5M hrs MTBF HMB TRIM & S.M.A.R.T Solid State Drive 3yrs Wty

Form Factor: M.2 2280
Interface: PCI-Express 3.0 x2, NVMe 1.3
Total Capacity: 128GB*
Warranty: Limited 3-years
Sequential Read Speed : up to 1100 MB/s**
Sequential Write Speed : up to 500 MB/s**
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T supported

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.

Interface PCI-Express 3.0 x2, NVMe 1.3
Form Factor M.2 2280
Total Capacity 128GB
Warranty Limited 3-year or 100TBW
NAND NAND Flash
External DDR Cache N/A
Sequential Read speed Up to 1100 MB/s
Sequential Write speed Up to 500 MB/s
Random Read IOPS Up to 90K
Random Write IOPS Up to 100K
Dimension (W x H x L) 80 x 22 x 2.3 mm
Mean time between failure (MTBF) 1.5M hours
Power Consumption (Active) Average : R : 2510mW ; W : 1850mW
Power Consumption (Idle) 50mW
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C

Note
* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
* Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
* Speeds based on internal testing. Actual performance may vary.
* TBW (Terabyte Written):Terabytes Written' is the total amount of data that can be written into an SSD before it is likely to fail.
* 1GB = 1 billion bytes. Actual useable capacity may vary.
* 3 years or 100 TBW, whichever comes first.
