DESCRIPTION

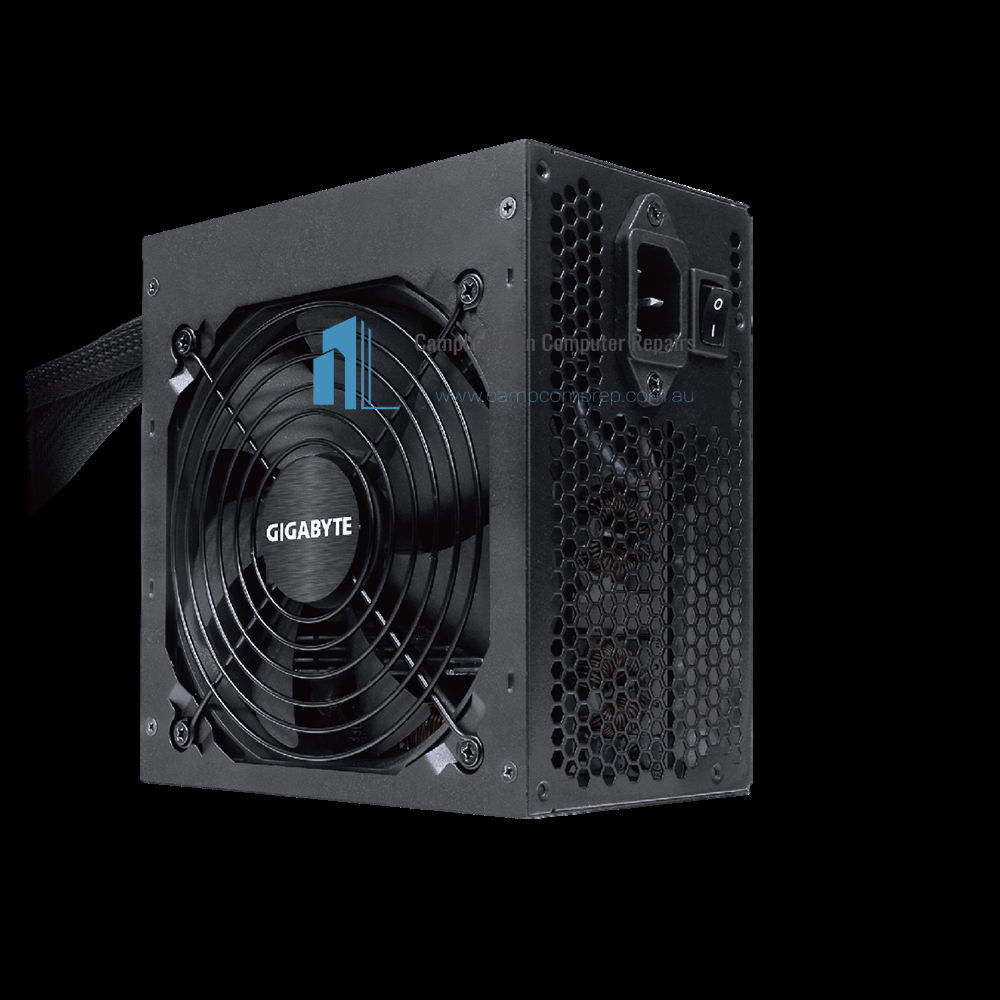

Gigabyte PB500 500W ATX PSU Power Supply 80+ Bronze 86% 120mm Fan >100K Hrs MTBF Japanese Capacitors Single +12V rail Mesh Braided Cables

Features
80 PLUS Bronze certified
120mm Silent Fan
Single +12V rail
OPP/UVP/OVP/SCP/OCP/OTP Fully protection
3 years warranty

Model PB500
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC(>0.9 typical)
Input Voltage 100-240 Vac(full range)
Input Current 8A Max
Input Frequency 50-60Hz
Output Capacity 500W
Dimension 150x140x86mm
Fan Type 120mm Hydraulic Bearing(HYB)Fan
Efficiency 86% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC
Connectors ATX/MB 20+4 Pin x 1 (600mm)
CPU/EPS 4+4 Pin x 1(600mm)
PCI-e 6+2 Pin x 2 (500mm+150mm)
SATA x 4 (500mm+150mm+150mm+150mm)
4 Pin Peripheral x 3 & 4 Pin Floppy x 1
(500mm+150mm+150mm+150mm)

80 PLUS BRONZE CERTIFIED
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. PB500 can be up to 86% efficiency. (80 Plus Bronze qualification is 85%)

RELIABLE MESH BRAIDED CABLE
PB500 provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.

80 PLUS BRONZE CERTIFIED

120MM SILENT FAN
120mm silent fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
