HD DIGITAL SET TOP BOX
SKU 43121488
AU$71.50
1
Save this product for later
HD DIGITAL SET TOP BOX
Product Details
UPC: SRT 5434
Brand: STRONG

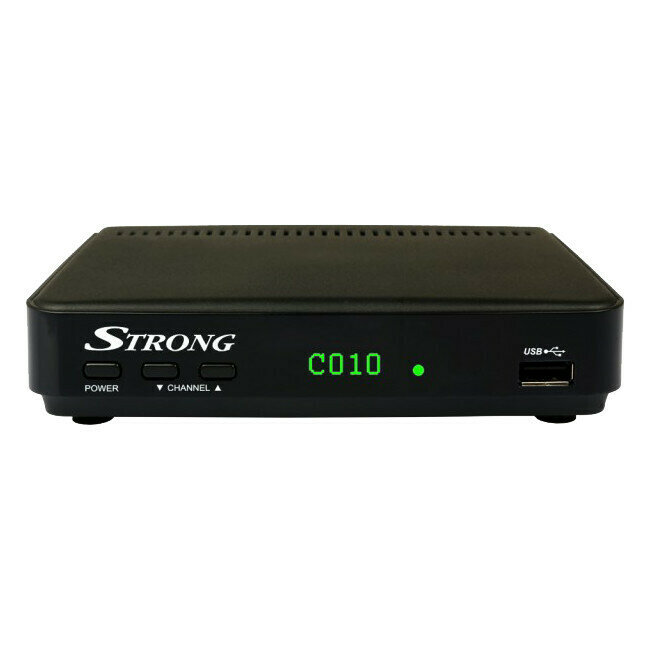

Strong - SRT5434 HD DIGITAL SET TOP BOX WITH RECORD FUNCTION VIA USB
High Definition Digital Set Top Box, with Digital Video Recorder ability - Record up to 500 hours of live TV
STRONG's High Definition Digital Set Top Box with Record function (SRT 5434) gives any TV, even older analog TV access to Digital TV.
Get access to all the latest Digital channels, with this easy to install Box.
You can record directly to a USB Hard Drive and never miss your favorite show again.
Did you know that you can use this unit for Multimedia playback?
Using the USB located on the front of the unit you can watch movies, photos and listen to music.
Turn your TV into a Media Centre.
- MPEG 4 compliant, High Definition
- Record to USB (Not supplied) - up to 500 hours of recording on 1TB Disk
- Pause & Rewind Live TV
- Access the latest Digital Channels
- Electronic Program Guide - EPG
- Multiple Outputs; HDMI & Composite
- USB 2.0 Host for Firmware Update
- Closed Captions
- Auto & Manual Channel Search
- Favorite Channel List
- MEPS Compliant and Parental Lock
- Multimedia Playback via USB
Specifications
| Audio/Video IN/OUTPUT | |
| Audio | Coaxial digital audio output/ SPDIF |
| Audio L/R | RCA/Cinch, Volume and Mute control/ |
| USB | USB 2.0 Host (USB Port x 1 Front Panel), A-type |
| Data Port | |
| USB | USB 2.0 Host (USB Port x 1 Front Panel), A-type |
| General Data | |
| Dimensions | W150 x D90 x H30mm (D110mm with connections) |
| Weight | 0.15Kgs (15grams) |
| Hard Disk - Not Supplied | |
| Hard Disk - Not Supplied | Not supplied, Will support 1 TB External USB Hard Disk Drive: NTFS or Fat32 File system |
| MPEG Transport Stream & AVDecoding | |
| Aspect Ratio | 4:3, 16:9 |
| Audio Decoding | MPEG-2 Layer I & II (Music Cam), MPEG4 AAC andMPEG4 AAC-HE (AAC+), Dolby Digital (AC-3) with bit rates up tp 640K bits/s, LPCM up to 48KHz, MP3 |
| Audio Mode | Stereo/Joint Stereo/Mono |
| Profile Level | MPEG-1/2 MP@ML, H.264 DivX & MPEG4 |
| Sampling Rate | 32KHz, 44.1KHz & 48KHz |
| Video Formats | JPEG, BMP, PNG, AVI, MKV, MP4, OGG, TS, TP, TRP, MPG, XVID |
| Video Resolution | 576i, 576p, 480i, 480p, 720p60, 1080i, 1080p |
| MPEG TS A/V Decoder | |
| Transport Stream | MPEG-2 ISO/IEC 13818-1 |
| Video | RCA/Cinch, Video Outputs (CVBS) @576I OR 480I, HDMI 1.3(High Definition Multimedia Interface)SUPPORT HDCP |
| Power Supply | |
| Input voltage | AC100~240V (Detachable) |
| Output voltage | DC5V 1200mA |
| Power Consumption | Standby <1W, on mode Max 6W (without DVR) |
| Tuner | |
| Carrier Mode | 1k,2k,4k,8k,16k,32k mode |
| Code Rate | 1/2,3/5,2/3,3/4,4/5,5/6 |
| Frequency Range | 177.5-226.5MHz (VHF) BW=7Mhz | 474-8585MHz (UHF) BW =8Mhz |
| Guard Interval Modes | 1/4,1/8,1/16,1/32,1/128 |
| IF Bandwidth | 7 MHz |
| Input Impedance | 75 ohm |
