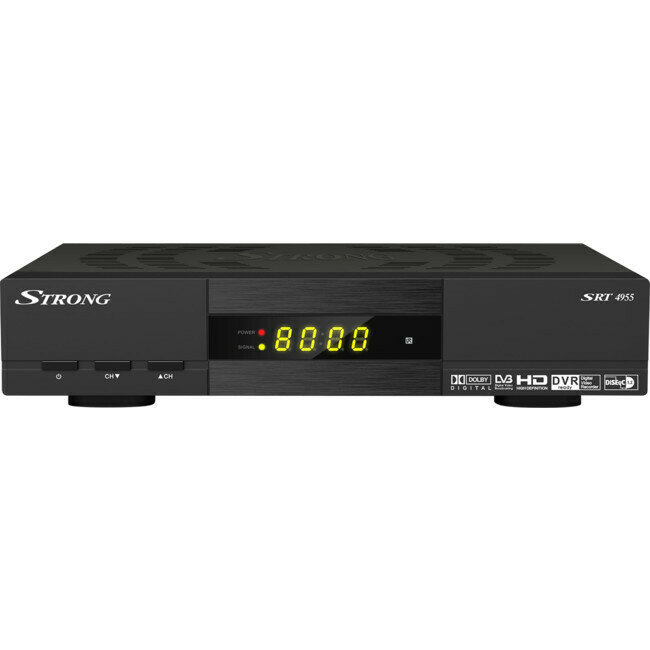

HD Digital Satellite Receiver with Card Reader, HDMI & Composite output, DVR Ready via USB (Not Supplied), Suitable for both C-Band & Ku Band systems. (Does not receive VAST)
Features:
{tab Specifications}
Audio/Video IN/OUTPUT | |
Audio | Mono, Stereo, Joint Stereo |
Connectors | |
HDMI | Digital Video/ Digital Audio |
LNB IF Input | IEC 169 - 24 Female |
RCA | Audio L/R x 1, CVBS x 1 |
RF Modulator | IEC 169-2, Female / Male - Frequency 470 ~860Mhz |
Data Port | |
RS-232 Serial | 9 pin D-sub male approx 115K bps |
USB | DC 5V 500mA (x2 Front & Rear) |
LNB/ Tuner Input | |
Demodulation | QPSK, 8PSK |
Frequency Range | 950Mhz - 2150MHZ |
Input Symbol Rate | DVB-S, 2~45 Ms/s DVB-S2 - 10 ~30Ms/s (QPSK, 8PSK) |
RF Impedance | 75 |
RF Input Signal Level | -25 ~ -65dBM |
MPEG Transport Stream & AV Decoding | |
Video Formats | PAL |
MPEG TS A/V Decoder | |
Aspect Ratio | 4:3, 16:9 |
Audio Mode | MPEG1 layer I/II, MPEG 2 layer II, AC3 Dolby Digital |
Audio Sampling Rates | 32, 44.1 and 48KHz |
Data Rate | up to 15M bit/s |
Transport Stream | DVB2-2 Compliant |
Video | MPEG-2, MPEG-4, H.264 |
Video Resolution | 1920 x 180p/i, 1280 x 720p, 750 x 576 p/i |
Power Supply | |
Power Consumption | Max 24w |
Tuner | |
DiSeqC Control | Version 1.2 Compliant USALS |
