PK Loop Antennas are proudly designed and manufactured inAustralia

An outdoor AM Loop antenna with remote tuning for buildings constructed with steel roofs and frames ( like sheds or caravans) or those with re-inforced concrete.

The Loop mounts outdoors and a single co axial cable connects it to the tuning control box.

There is an output for a wired connection to your AM radio / receivers external antenna and ground terminals

The tuning system is sharp and peaks right on station, boosting weak signals whilst rejecting interference and enhancing reception quality.

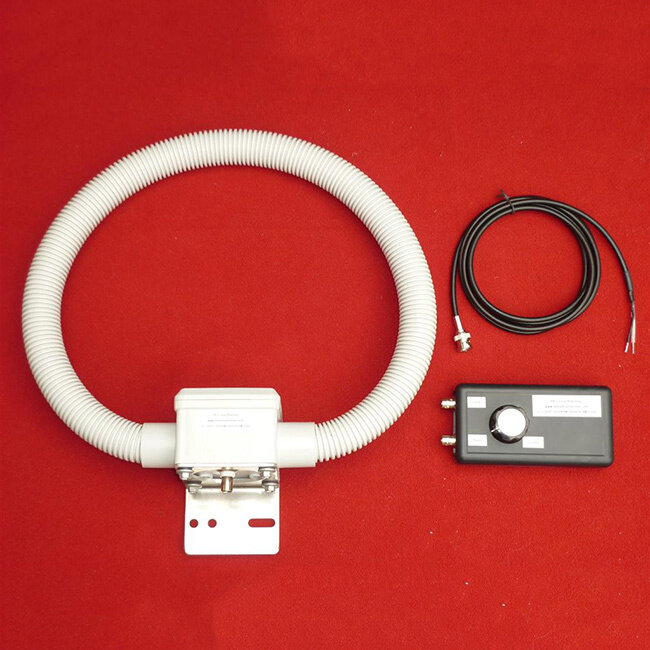

Supplied Accessories

• 1 x Loop antenna,control box with inbuilt 9V battery holder and instructions
• 1 x Loop cable, a 10m Coax cable pre-fitted with &F& connectors
• 1 x 1m - F- connect to open ends cable for radio / receiver antenna - ground terminals
• 1 x L-mount bracket with screws to fit it to the loop base

Specifications:

Set Up

• Connect the coax cable between the Loop antenna and the control box connecter marked &LOOP&
• Connect your Radio / Receiver to the connector marked &Radio& on the control box
• Insert a fresh 9v Alkaline battery ( Not supplied ) into the control box
• Tune your Radio to the desired Stations' frequency
• Slowly turn the manual tune control to the point of strongest reception
• Orientate the Loop Antenna to obtain the clearest reception; Edge on towards the transmitter is best.
