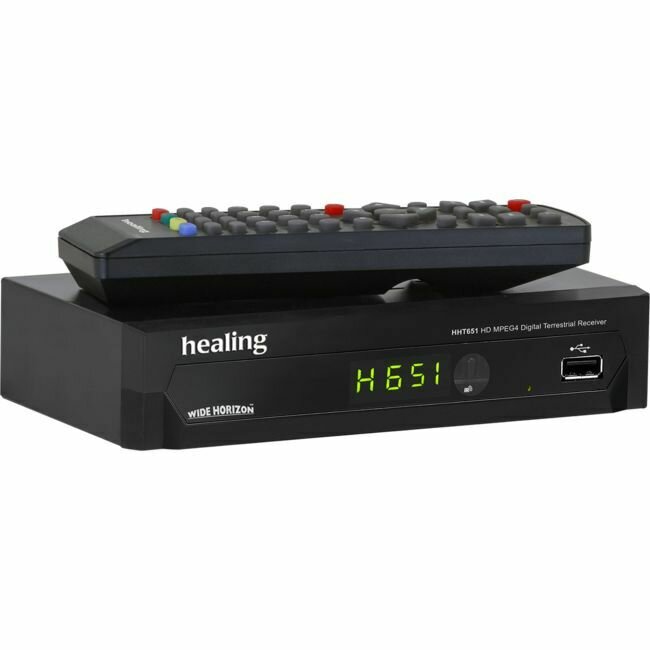

HHT651 HD SET TOP BOX WITH USB RECORD / PLAYBACK - HEALING

HHT651 has the features and performance to make a difference to your TV viewing pleasure.

Works as a powerful USB Recorder and Media player via the USB port, as well as TimeShift live TV.

FEATURES:

• Resolutions up to 1920 x 1080i.
• Displays 16:9 on 4:3 screens.
• Video Outputs: HDMI and Composite CVBS.
• 7 Day Electronic Program Guide with 8 day cross over.
• Closed Captions.
• Audio Description service (AD) where broadcast.
• Signal intensity and signal quality bars.
• Saves program parameters if power fails.
• Digital Audio: Coaxial S/PDIF with Dolby Digital wherebroadcast.
• Parental Lock program control option.
• Flexible Media Player.
• Firmware upgradable via USB 2.0.
• Energy efficient, consumes 0.8W on Standby whilst front panel LED clock continues at low brightness and Antenna Loop Out remains active.
• Compact case dimensions: W 168 x D 90 x H 36mm.

{tab Specs}

TUNER

• Decodes High Definition and Standard Definition Digital Terrestrial TV & Radio

• Frequency Range - VHF: 174 – 230MHz, UHF 470 – 862MHz

• Modulation Mode - COFDM

• Input Signal Level -15 to -70dBm

• Input Impedance - 75O

• Antenna Power - 5V DC @ up to 60mA

• Constellation - QPSK, 16QAM or 64QAM

• Guard Interval - 1/4, 1/8, 1/16 or 1/32

• Transmission Mode - 8K or 2K

• Channel Bandwidth - 7MHz (Preset for Australia) or 8MHz

• Closed Caption Subtitles Function embedded, where broadcast

• Audio Description service For the visually impaired, where broadcast

• EPG Information 7 day SI EIT p/f tables (includes 8th day cross-over)

VIDEO

• Video Outputs - HDMI and Composite (CVBS) RCA socket

• Video Resolutions - 1920x1080i, 1280x720p, 720x576i or720x576p

• Video Decompression MPEG-4 ASP, ITU-T H.264, MP&HP@L4.1 or MPEG-2 MP@HL AVC

• Video Output System - PAL, NTSC or SECAM

• Aspect Ratios Widescreen - 16:9, Centre Cut 4:3 or Letterbox 4:3, Auto

Flexible Media Player

• Video: MPEG1, MPEG2, MPEG4/H.264, VC-1. Motion JPEG (.flv, .avi, .mpg, .dat, .vob, .div, .mov, .mkv, .m2t, .m2ts, .ts,.tp, .trp, .divx)

• Picture: JPEG, JPG, BMP, PNG

• Music: WMA, MP3, OGG, AAC (.wma, .mp3, .m4a)

• File Management: NTFS or FAT32, system copy & delete operations

AUDIO

• Audio Outputs Digital Coaxial with AC3 (5.1), where broadcast analogue left & right

• Audio Decompression MPEG-1, MPEG-2 (Layer I/II), HE-AAC V1.0 and ICE958 S/PDIF

• Audio Modes Stereo, Joint Stereo, HDMI Audio PCM or Non-PCM

General

• Mains Power - AC 90 – 240Volts @ 50/60Hz
  Power Consumption - 4W typical, < 0.8W standby

• Operating Temperature - 0 – 50°C

• Case Dimensions - 168mm (W) x 90mm (D) x 36mm (H)

• Weight - 0.55Kg

• Accessories Included - Remote Control Unit, Batteries,Power Cable, Owners Manual
