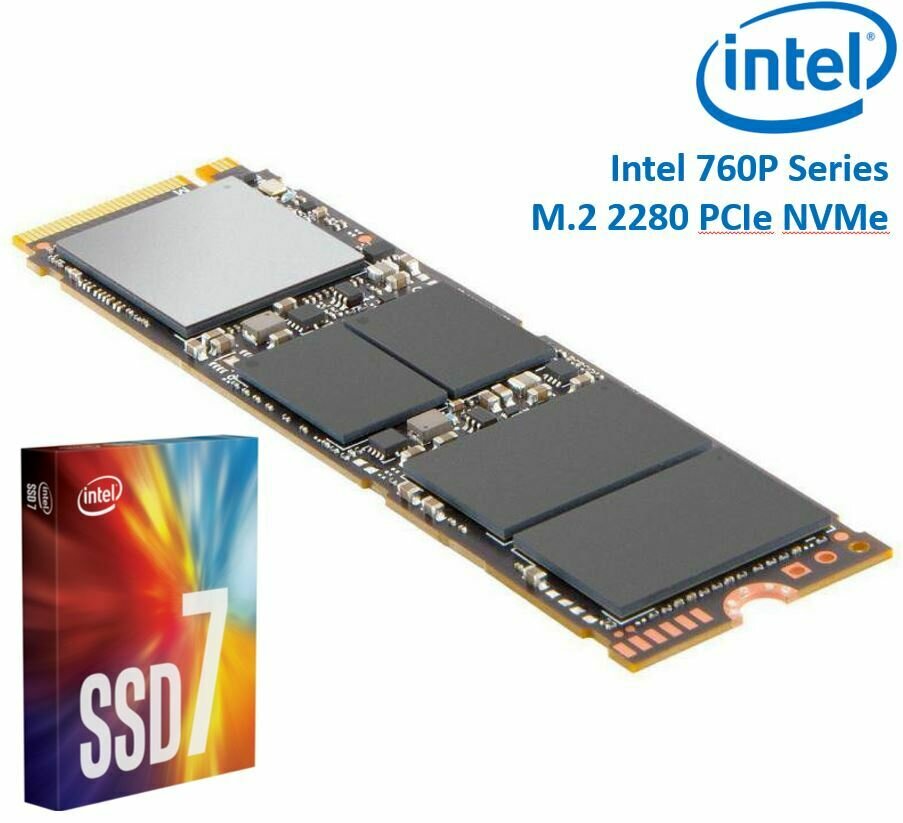

Intel 760P Series M.2 80mm 256GB SSD 3D2 TLC PCIe NVMe 3230/1315MB/s 205K/265K IOPS 1.6 Million Hours MTBF Solid State Drive 5yrs Wty ~HBI-600P-256GB

Features: Twice the Performance. Half the Power Consumption.

High Performance
Accelerate your PC with PCIe* bandwidth, 64-layer Intel® 3D NAND Technology, and twice the performance of its previous generation – the Intel® SSD 600p Series.1
Low Power Consumption
Compared with its previous generation, the Intel® SSD 760p Series reduces its active power up to 50%.2
Intel Quality and Reliability
Thanks to Intel’s industry leading quality and reliability, the Intel® SSD 760p Series supports AES 256-bit self-encryption and offers a 5-year limited warranty.
Made for Easy Installation
A small M.2 (80mm) form factor offers a wide range of capacities and simply plugs into M.2 - M key slots on major motherboards.

Technical Specifications

Essentials
Status Launched
Launch Date Q1'18
Lithography Type 3D2 TLC
Capacity 256 GB

Performance
Sequential Read (up to) 3210 MB/s
Sequential Write (up to) 1315 MB/s
Random Read (8GB Span) (up to) 205000 IOPS
Random Write (8GB Span) (up to) 265000 IOPS
Power - Active 50 mW
Power - Idle 25 mW

Reliability
Shock (Operating and Non-Operating) 1000 G
Mean Time Between Failures (MTBF) 1.6 million hours
Vibration - Operating 2.17 GRMS
Uncorrectable Bit Error Rate (UBER) <1 sector per 10^15 bits read
Warranty Period 5
Endurance Rating (Lifetime Writes) 288 TBW
Vibration - Non-Operating 3.13 GRMS

Package Specifications
Interface PCIe NVMe 3.1 x4
Weight <10 grams
Form Factor M.2 22 x 80mm

Advanced Technologies
Intel® Smart Response Technology Yes
Temperature Monitoring and Logging No
Enhanced Power Loss Data Protection No
Intel® Rapid Start Technology Yes
Intel® Remote Secure Erase No
High Endurance Technology (HET) No
Hardware Encryption AES 256 bit
End-to-End Data Protection Yes
