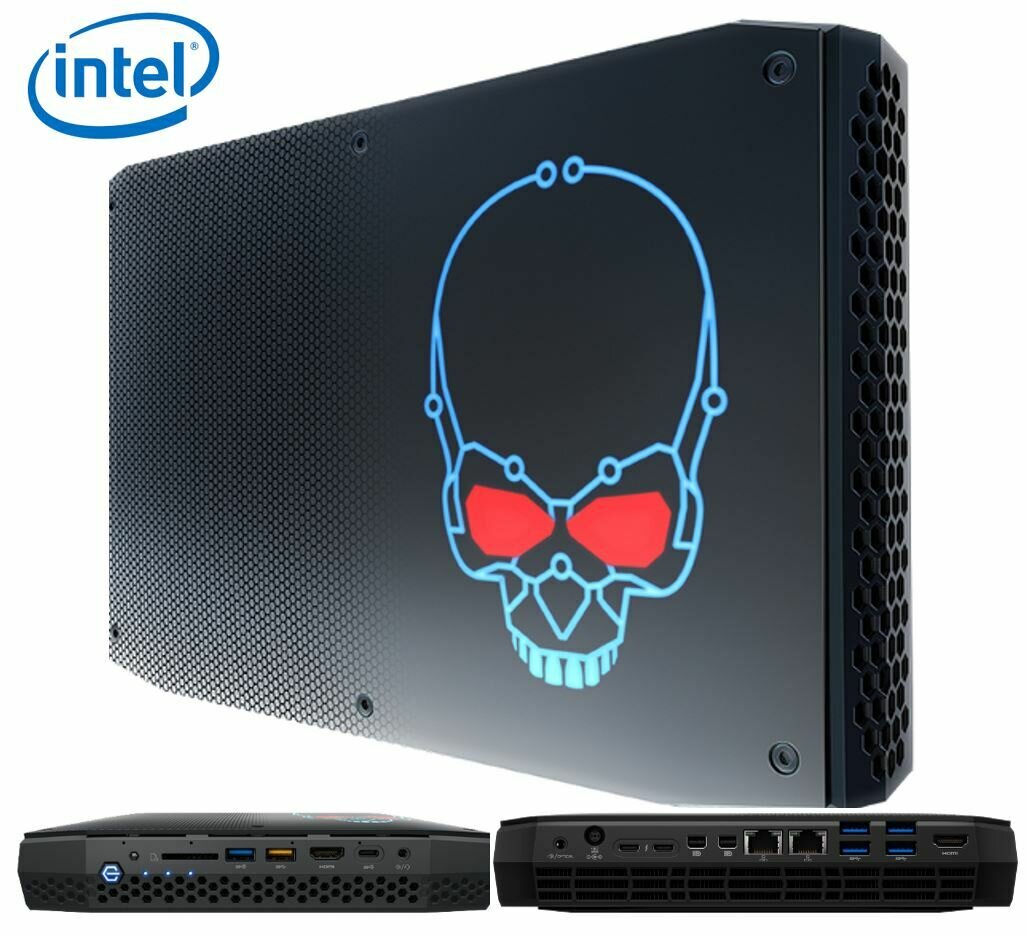

Intel BOXNUC8I7HVK4 NUC mini PC i7-8809G 4.2GHz Radeon RX Vega M GH 2xDDR4 SODIMM 2xM.2 PCIe 2xmDP 2xThunderbolt 6xDisplays 2xGbE LAN WiFi BT 13xUSB

Essentials
Product CollectionIntel® NUC Kit with 8th Generation Intel® Core™ Processors
Code NameProducts formerly HADES CANYON
StatusLaunched
Launch DateQ1'18
Board Form FactorUCFF (5.5' x 8')
SocketSoldered-down BGA
Internal Drive Form FactorM.2 SSD
# of Internal Drives Supported2
Lithography14 nm
TDP100 W
DC Input Voltage Supported19 VDC
Processor IncludedIntel® Core™ i7-8809G Processor with Radeon™ RX Vega M GH graphics (8M Cache, up to 4.20 GHz)
Warranty Period3 yrs
Supplemental Information
Embedded Options AvailableNo
DescriptionOther features: Includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2
Memory & Storage
Max Memory Size (dependent on memory type)32 GB
Memory TypesDDR4-2400+ 1.2V SO-DIMM
Max # of Memory Channels2
Max Memory Bandwidth38.4 GB/s
Max # of DIMMs2
ECC Memory Supported ‡No
Processor Graphics
Integrated Graphics ‡Yes
Graphics Output2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a
# of Displays Supported ‡6
Discrete GraphicsRadeonâ„¢ RX Vega M GH graphics
Expansion Options
PCI Express RevisionGen3
PCI Express Configurations ‡Dual M.2 slots with PCIe x4 lanes
Removable Memory Card SlotSDXC with UHS-I support
M.2 Card Slot (wireless)2230
M.2 Card Slot (storage)22x42/80, 22x80
I/O Specifications
# of USB Ports13
USB ConfigurationF: USB3, 2x USB 3.1g2 (Type A and C); R: 4x USB3, 2x Thunderbolt3 (USB3.1g2); INT: 2x USB2, 2x USB3
USB Revision2.0, 3.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)0 + 2
USB 3.0 Configuration (External + Internal)1F, 4R, 2i
Total # of SATA Ports2
Max # of SATA 6.0 Gb/s Ports2
RAID Configuration2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
Audio (back channel + front channel)7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
