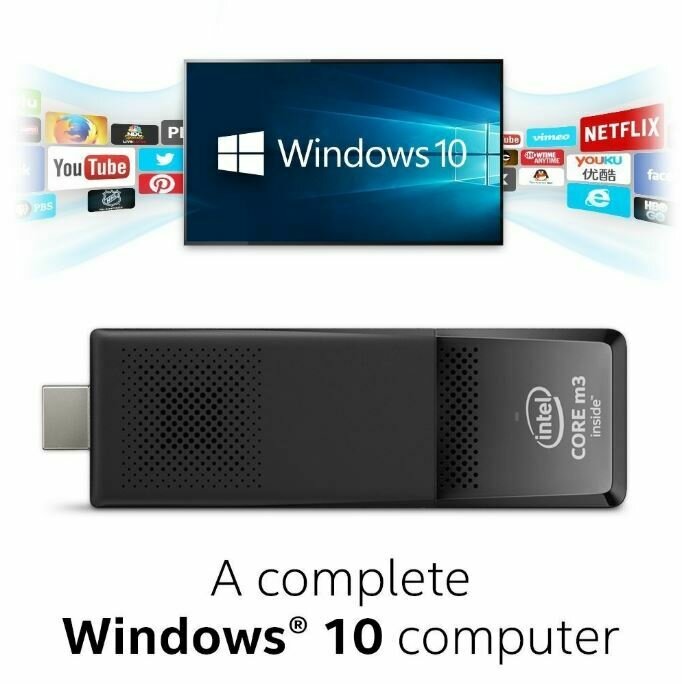

Intel BOXSTK2M3W64CC Compute Stick Mini PC Windows 10 Home Quad-Core m3-6Y30 2.2GHz 4GB DDR3L 64GB eMMC HDMI MicroSD WiFi BT 3xUSB Portable Plug&Play

Essentials
Product CollectionIntel® Compute Stick with 6th Generation Intel® Core™ Processors
Code NameProducts formerly Cedar City
StatusLaunched
Launch DateShipping: 4/29/2016
Board Form FactorCompute Stick
SocketSoldered-down BGA
# of Internal Drives Supported1
Embedded Storage64 GB
Lithography14 nm
DC Input Voltage Supported5 VDC
Pre-Installed Operating SystemWindows 10, 64-bit*
Processor IncludedIntel® Core™ m3-6Y30 Processor (4M Cache, up to 2.20 GHz)
Warranty Period3 yrs
Supplemental Information
Embedded Options AvailableNo
DatasheetView now
Product BriefView now
Additional Information URLView now
Memory & Storage
Included Storage64GB eMMC
Included Memory4GB LPDDR3-1866
Memory TypesLPDDR3-1866
Max # of Memory Channels2
Max Memory Bandwidth29.8 GB/s
Physical Address Extensions32-bit
Processor Graphics
Integrated Graphics ‡Yes
Graphics OutputHDMI 1.4b
# of Displays Supported ‡1
Expansion Options
Removable Memory Card SlotMicroSDXC with UHS-I support
I/O Specifications
# of USB Ports3
USB Revision3.0
USB 2.0 Configuration (External + Internal)0
USB 3.0 Configuration (External + Internal)1 + 2 hub
Integrated Wireless‡Intel® Wireless-AC 8260 + Bluetooth 4.2
Integrated BluetoothYes
Package Specifications
Low Halogen Options AvailableNo
Advanced Technologies
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Platform Trust Technology (Intel® PTT)Yes
Security & Reliability
Intel® AES New InstructionsYes
