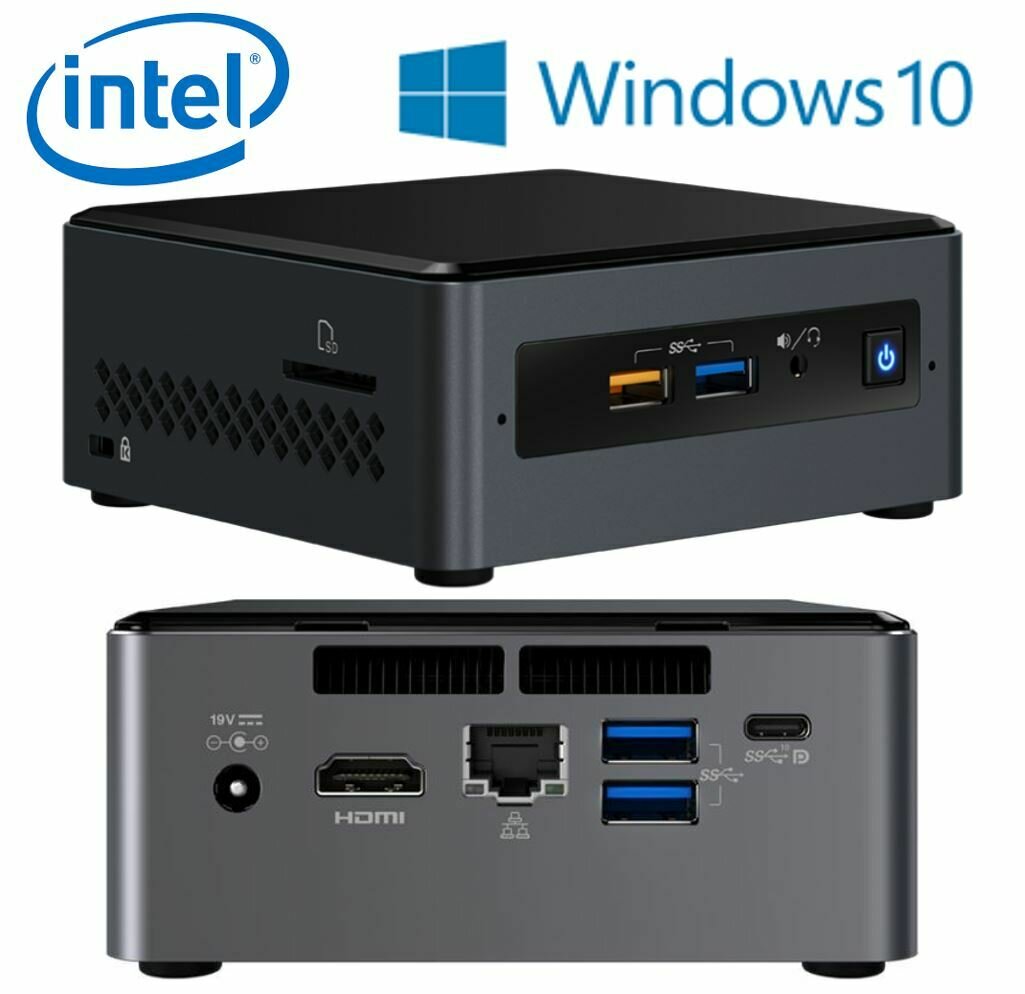

Intel NUC BOXNUC7I3BNHXF mini PC i3-7100U 2.4GHz 4GB 1TB HDD M.2 16GB Optane Windows 10 Home HDMI USB-C (DP1.2) 3xDisplays GbE LAN WiFi BT 4xUSB3.0

Essentials
Product CollectionIntel® NUC Mini PC with 7th Generation Intel® Core™ Processors
Code NameProducts formerly Baby Canyon
StatusLaunched
Launch DateQ3'17
Board Form FactorUCFF (4' x 4')
SocketSoldered-down BGA
Internal Drive Form FactorM.2 and 2.5' Drive
# of Internal Drives Supported2
Lithography14 nm
TDP15 W
DC Input Voltage Supported12-19 VDC
Recommended Customer PriceN/A
Pre-Installed Operating SystemWindows 10, 64-bit*
Processor IncludedIntel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
Warranty Period3 yrs
Supplemental Information
Embedded Options AvailableNo
DatasheetView now
DescriptionOther features: 16GB Intel® Optane™ Memory M.2 module pre-installed, 1TB HDD, Windows® 10 x64 Home, includes USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones
Memory & Storage
Included Storage16GB Intel® Optane™ Memory, 1TB HDD
Included Memory16GB Intel® Optane™ Memory + 1x 4GB DDR4-2400
Max Memory Size (dependent on memory type)32 GB
Memory TypesDDR4-2133 1.2V SO-DIMM
Max # of Memory Channels2
Max Memory Bandwidth34.1 GB/s
Max # of DIMMs2
ECC Memory Supported ‡No
Processor Graphics
Integrated Graphics ‡Yes
Graphics OutputHDMI 2.0a; USB-C (DP1.2)
# of Displays Supported ‡3
Expansion Options
PCI Express RevisionGen3
PCI Express Configurations ‡M.2 slot with PCIe x4 lanes
Removable Memory Card SlotMicro SDXC with UHS-I support
M.2 Card Slot (storage)22x42/80
I/O Specifications
# of USB Ports6
USB Configuration2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision2.0, 3.0
USB 2.0 Configuration (External + Internal)0 + 2
USB 3.0 Configuration (External + Internal)2B 2F + 0
Total # of SATA Ports2
Max # of SATA 6.0 Gb/s Ports2
Audio (back channel + front channel)7.1 digital (HDMI mDP); L+R+mic (F)
