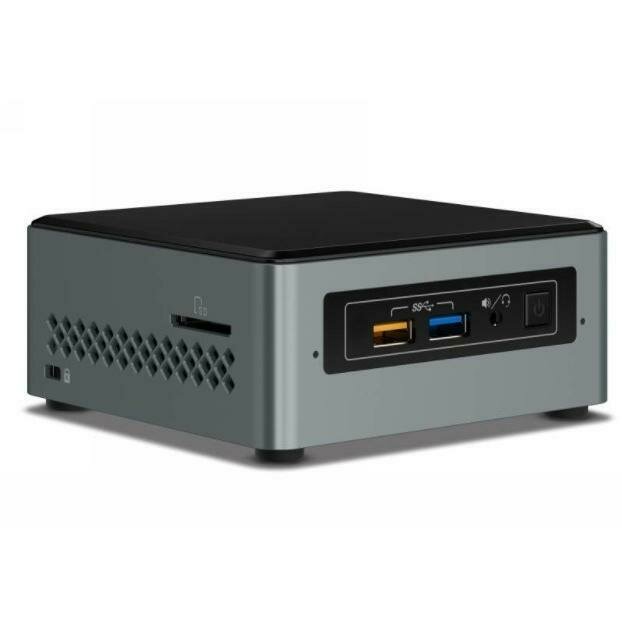

Intel NUC mini PC J3455 2.3GHz 2xDDR3L SODIMM 2.5' HDD M.2 SATA/PCIe SSD VGA HDMI 2xDisplays GbE LAN WiFi BT 4xUSB3.0 for Digital Signage POS

Essentials
Product CollectionIntel® NUC Kit with Intel® Celeron® Processors
Code NameProducts formerly Arches Canyon
StatusLaunched
Launch DateQ4'16
Expected DiscontinuanceSee Roadmap
Board Form FactorUCFF (4' x 4')
SocketSoldered-down BGA
Internal Drive Form Factor2.5' Drive
# of Internal Drives Supported1
Lithography14 nm
TDP10 W
DC Input Voltage Supported12-19 VDC
Processor IncludedIntel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)
Warranty Period3 yrs
Supplemental Information
Embedded Options AvailableNo
DatasheetView now
DescriptionOther features: Includes SDXC card slot, dual microphones
Memory Specifications
Max Memory Size (dependent on memory type)8 GB
Memory TypesDDR3L-1600/1866 1.35V SO-DIMM
Max # of Memory Channels2
Max Memory Bandwidth14.9 GB/s
Max # of DIMMs2
ECC Memory Supported ‡No
Graphics Specifications
Integrated Graphics ‡Yes
Graphics OutputVGA (HDB15); HDMI 2.0
# of Displays Supported ‡2
Expansion Options
PCI Express RevisionGen2
PCI Express Configurations ‡M.2 slot with PCIe x1 lane
Removable Memory Card SlotSDXC with UHS-I support
M.2 Card Slot (wireless)22x30
I/O Specifications
# of USB Ports6
USB Configuration2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision2.0, 3.0
USB 2.0 Configuration (External + Internal)0 + 2
USB 3.0 Configuration (External + Internal)2B 2F + 0
Total # of SATA Ports1
Max # of SATA 6.0 Gb/s Ports1
RAID ConfigurationN/A
Audio (back channel + front channel)7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN10/100/1000
Integrated WifiIntel® Wireless-AC 3168 + BT 4.2
Integrated BluetoothYes
Consumer Infrared Rx SensorYes
S/PDIF Out ConnectorTOSLINK
Additional HeadersCEC, 2x USB2.0, AUX_PWR, FRONT_PANEL
