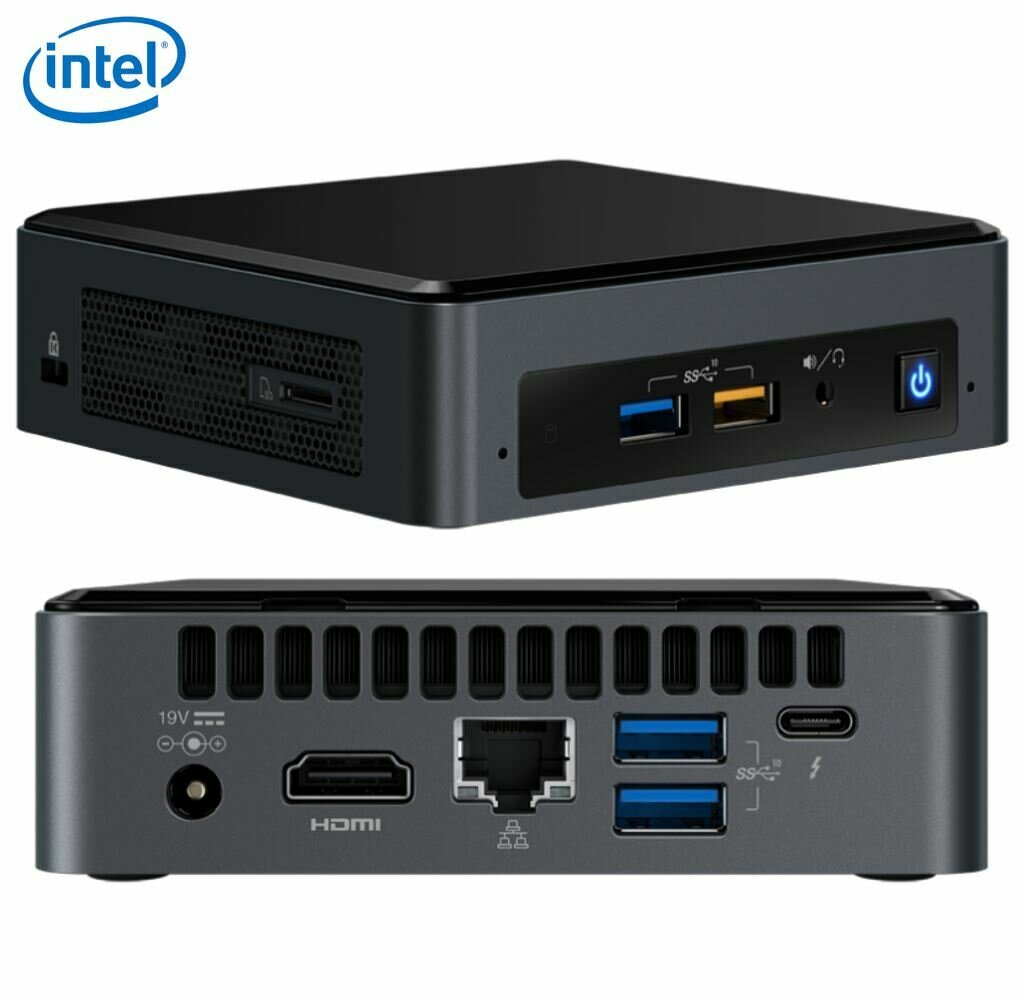

Intel NUC mini PC i3-7100U 2.4GHz 2xDDR4 SODIMM M.2 SATA/PCIe SSD HDMI DP USB-C 3xDisplays GbE LAN Wifi BT 4xUSB3.0 for DS POS ~BOXNUC7I3BNH
Store
/
Systems - AIO
/
NUC
/
Thin-Client
/
Barebone PC
SKU BOXNUC7I3BNK
AU$541.97
Quantity:
1
Add More
Add to Bag
Go to Checkout
Save this product for later
Favorite
Favorited
View Favorites
Share this product with your friends
Share
Share
Pin it
Intel NUC mini PC i3-7100U 2.4GHz 2xDDR4 SODIMM M.2 SATA/PCIe SSD HDMI DP USB-C 3xDisplays GbE LAN Wifi BT 4xUSB3.0 for DS POS ~BOXNUC7I3BNH
Store
/
Systems - AIO
/
NUC
/
Thin-Client
/
Barebone PC
Product Details
UPC:
5032037088534
Brand:
Intel
Intel NUC mini PC i3-7100U 2.4GHz 2xDDR4 SODIMM M.2 SATA/PCIe SSD HDMI DP USB-C 3xDisplays GbE LAN Wifi BT 4xUSB3.0 (3rd display via USBC, required adapter CBAT-USBCHDMI-2)
Essentials
Product CollectionIntel® NUC Kit with 7th Generation Intel® Core™ Processors
Code NameProducts formerly Baby Canyon
StatusLaunched
Launch DateQ1'17
Board Form FactorUCFF (4' x 4')
SocketSoldered-down BGA
Internal Drive Form FactorM.2 SSD
# of Internal Drives Supported1
Lithography14 nm
TDP15 W
DC Input Voltage Supported12-19 VDC
Recommended Customer Price$279.00
Processor IncludedIntel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
Warranty Period3 yrs
Supplemental Information
Embedded Options AvailableNo
DatasheetView now
DescriptionOther features: Includes USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes SDXC card slot, dual microphones
Memory & Storage
Max Memory Size (dependent on memory type)32 GB
Memory TypesDDR4-2133 1.2V SO-DIMM
Max # of Memory Channels2
Max Memory Bandwidth34.1 GB/s
Max # of DIMMs2
ECC Memory Supported ‡No
Processor Graphics
Integrated Graphics ‡Yes
Graphics OutputHDMI 2.0a; USB-C (DP1.2)
# of Displays Supported ‡3
Expansion Options
PCI Express RevisionGen3
PCI Express Configurations ‡M.2 slot with PCIe x4 lanes
Removable Memory Card SlotSDXC with UHS-I support
M.2 Card Slot (storage)22x42/80
I/O Specifications
# of USB Ports6
USB Configuration2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision2.0, 3.0
USB 2.0 Configuration (External + Internal)0 + 2
USB 3.0 Configuration (External + Internal)2B 2F + 0
Total # of SATA Ports2
Max # of SATA 6.0 Gb/s Ports2
RAID ConfigurationN/A
Audio (back channel + front channel)7.1 digital (HDMI mDP); L+R+mic (F)
Integrated LAN10/100/1000
Integrated Wireless‡Intel® Wireless-AC 8265 + Bluetooth 4.2
Integrated BluetoothYes
Consumer Infrared Rx SensorYes
Additional HeadersCEC, 2x USB2.0, FRONT_PANEL
# of Thunderboltâ„¢ 3 Ports0
Show More
