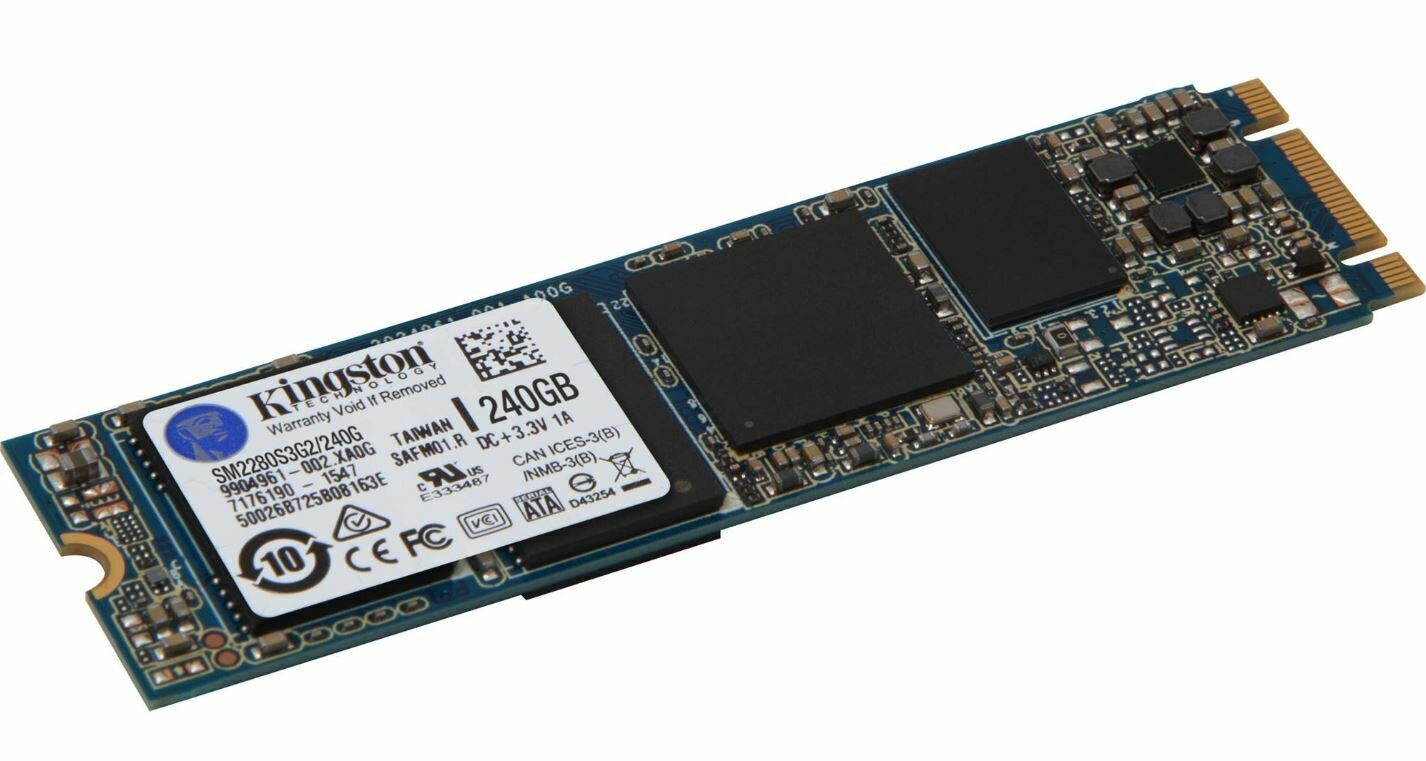

Kingston G2 240GB M.2 2280 SSD SATA 6Gbps 550/520MB/s 100,000/80,000 IOPS 1 million hours MTBF SFF Solid State Drive

SSDNow M.2 SATA G2 Drive
Kingston’s M.2 SATA G2 SSD is a compact, caseless internal solid-state drive that combines high capacity with low power consumption. Lighter weight than a cased SSD, the M.2 SATA G2 SSD optimises performance with advanced garbage collection, wear-levelling, TRIM support1 and DevSleep. Suitable for small-form-factor (SFF) PCs, the M.2 2280 SATA G2 SSD easily integrates into designs with M.2 connectors. The complimentary Kingston SSD Manager (KSM) monitors warranty status and SSD health.

Features
Space-saving caseless design fits ultra-thin computing applications
Multi-purpose SFF connector replaces small mSATA and mini-PCIe slots
Capacities of up to 480GB2
M.2 Gen 2 SSDs are backed by a limited five-year warranty3

Specifications
Form factor: M.2 2280
Interface: SATA Rev. 3.0 (6Gb/s) – with backward compatibility to SATA Rev. 2.0
Capacities2: 120GB, 240GB, 480GB
Baseline performance:
Sequential Read/Write SATA Rev. 3.0:
120GB - Up to 550/200MB/s
240GB - Up to 550/330MB/s
480GB - Up to 550/520MB/s
Maximum 4k Read/Write:
120GB - up to 90,000/48,000 IOPS
240GB - up to 100,000/80,000 IOPS
480GB - up to 90,000/85,000 IOPS
Random 4k Read/Write:
120GB - up to 80,000/48,000 IOPS
240GB - up to 79,000/79,000 IOPS
480GB - up to 80,000/80,000 IOPS
Endurance:
120GB: 150TB and 0.56 DWPD
240GB: 300TB and 0.70 DWPD
480GB: 800TB and 0.93 DWPD
Power Consumption:
Max Read: 1.56W
Max Write: 3.01W
Idle: 0.06W
Storage temperatures: -40°C ~ 85°C
Operating temperatures: 0°C ~ 70°C
Dimensions: 80mm x 22mm x 3.5mm
Weight:
120GB - 5.99 (g)
240GB - 5.99 (g)
480GB - 7.98 (g)
Vibration operating: 2.17G Peak (7–800Hz)
Vibration non-operating: 20G Peak (10–2000Hz)
Life expectancy: 1 million hours MTBF
