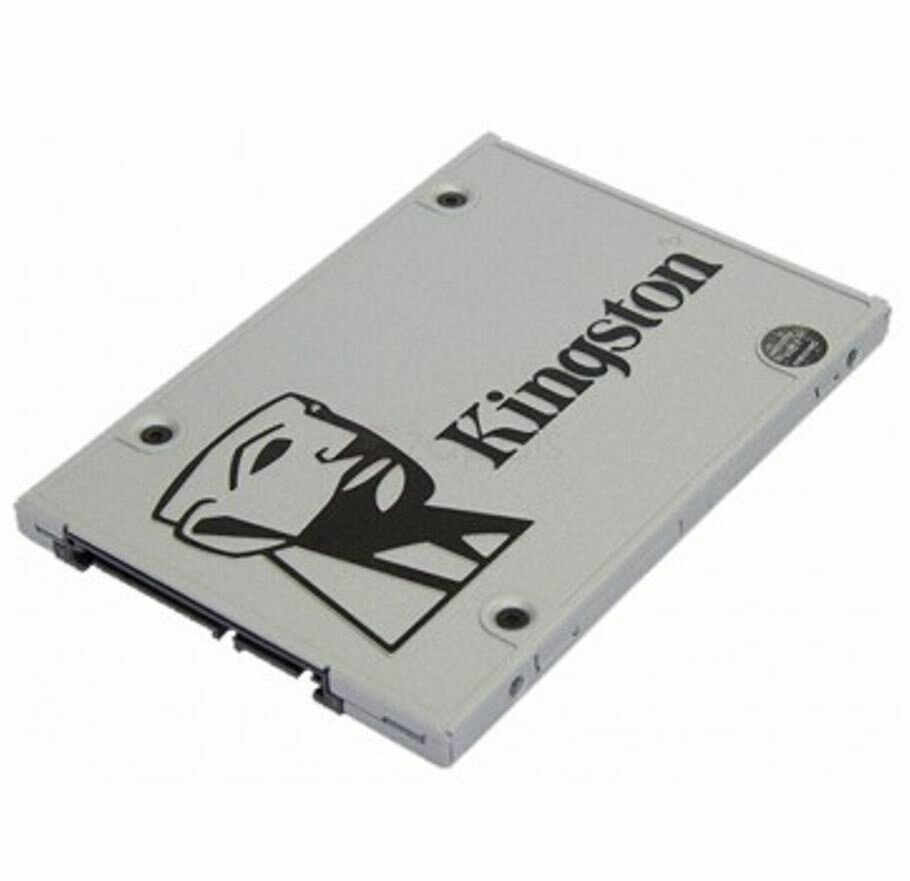

Kingston SUV500 240GB 2.5' SATA3 SSD - 3D NAND 7m 6Gb/s 520/500MB/s 79K/25K IOPS 1 mil hrs MTBF Solid State Drive 5yrs wty

Kingston’s UV500 SSD dramatically improves your system’s responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500’s available in multiple capacities from 120GB–1.92TB1 giving you options to meet your system’s needs.
10X faster than a 7200RPM hard drive2
AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0
Available in multiple form factors (2.5”/M.2/mSATA)
Multiple capacities up to 1.92TB1

Form factor: 2.5”/M.2 2280/mSATA

Interface:
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

Capacities1: 120GB, 240GB, 480GB, 960GB, 1.92TB

Controller: Marvell 88SS1074 Controller

NAND: 3D TLC

Encryption: Encryption Support (AES 256-bit)

Sequential Read/Write2:
120GB — up to 520/320MB/s
240GB — up to 520/500MB/s
480GB — up to 520/500MB/s
960GB — up to 520/500MB/s
1.92TB — up to 520/500MB/s

Maximum 4K Read/Write2:
120GB — up to 79,000/18,000 IOPS
240GB — up to 79,000/25,000 IOPS
480GB — up to 79,000/35,000 IOPS
960GB — up to 79,000/45,000 IOPS
1.92TB — up to 79,000/50,000 IOPS

Power Consumption: 0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX) Write

Dimensions:
100.1mm x 69.85mm x 7mm (2.5”)
80mm x 22mm x 3.5mm (M.2)
50.8mm x 29.85mm x 4.85mm (mSATA)

Operating temperature:
0°C~70°C

Storage temperature:
-40°C~85°C

Vibration operating:
2.17G Peak (7–800Hz)

Vibration non-operating:
20G Peak (10–2000Hz)

Life expectancy: 1 million hours MTBF

Warranty/support3:
Limited 5-year warranty with free technical support
