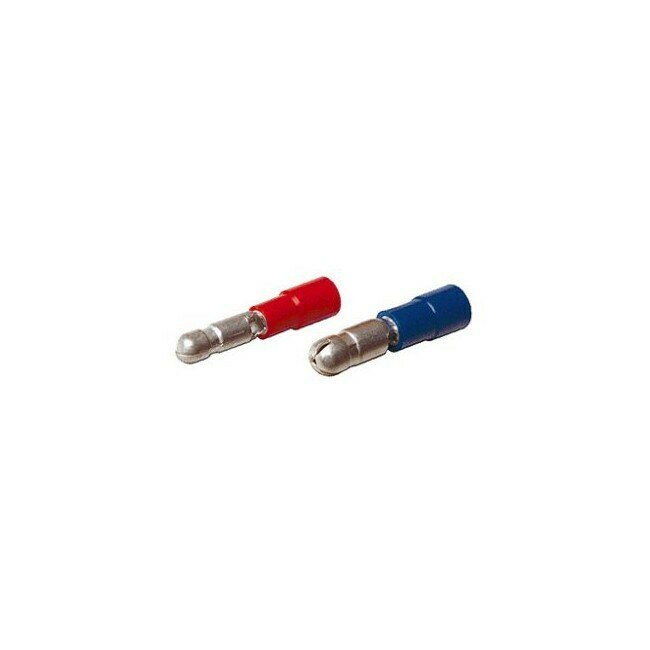

The funnel entry has been specifically developed to speed up wire terminating, whilst ensuring maximum reliability of the crimped connection.Only single grip terminals are funnel entry.(Features):
- Translucent nylon in fully insulated quick connectors reduces installation errors
- Approved by Government Authorities
- Conform to AS 3169
- Conductivity of copper 99.9% IACS (except Quick Connect Range - Brass: 30%, Zinc Copper 70%)
- Electroplating: Tin 99.9%
- Insulation: PVC - for all except, Nylon 6 or Nylon 66 for FIQC
- Top working temperature: 105°C
- Voltage rating: 600V AC/DC
- RED INSULATED: Conductor 0.25 ~ 1.65mm2/Current: 12 Amps
- BLUE INSULATED: Conductor 1.04 ~ 2.63mm2/Current: 16 Amps
- Colour: Blue
- 2.0mm Cable entry
