MPEG4, DVBS2 HD SAT RECEIVER
SKU 1000829
AU$214.50
1
Save this product for later
MPEG4, DVBS2 HD SAT RECEIVER
Product Details
UPC: SRT4922B+
Brand: STRONG

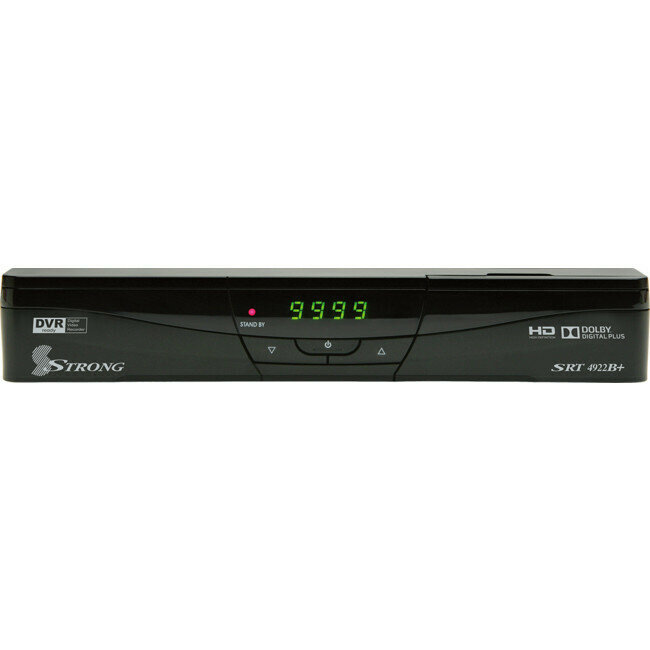

SRT4922B+ STRONG HD SATELLITE RECEIVER
High Definition DVB-S2 Satellite Receiver with Card Reader & Digital Video Recorder Ready with LAN, 3G and RF Modulator.
Premium quality unit with superior card reader for subscription services.
GUARANTEED TO READ ALL CARDS
NOTE: Does not receive VAST.
Features
- High Definition
- DVB-S2 MPEG 4 Compliant
- Receives all Free to Air Satellite Channels (NOT VAST)
- Embedded CONAX CAS 7 (Card Reader)
- DVR Function via USB External Hard Drive (Not Supplied)
- Ethernet Port / LAN (RJ45), Wi-Fi (Dongle not supplied) and 3G
- RF Modulator
- Time Shift, Record & Playback
- 2 x USB 2.0 Host for MP3 Playback, JPEG viewing and Firmware Update
- Advanced Blind Scan
- Electronic Program Guide with one touch record
- HDMI, Component Video Outputs, Coaxial S/PDIF Digital Audio Output
- Parental Lock
- MEPS Compliant
- Access to Youtube, Internet Radio, Weather, Maps, Flickr & Picasa via LAN
- Access V.O.D and IPTV
Specifications:
|
Connectors |
|
|
HDMI |
Digital Video / Audio Output |
|
LNB IF Input |
IEC 169 - 24 |
|
LNB If Loop-through |
IEC 169 - 24 |
|
RCA |
Video - 1 x RCA cinch / Audio L/R 2 x RCA cinch |
|
RF Modulator |
IEC 169-2, female / male - Frequency 470 ~ 860Mhz |
|
Data Port |
|
|
Ethernet |
RJ 45 |
|
USB |
DC 5V Max 500mA ( x 2) |
|
General Data |
|
|
Size |
250 x 45x 195mm (W X H X D) |
|
Weight |
1.6Kg |
|
LNB/ Tuner Input |
|
|
Demodulation |
Front End DVB-S/S2 QPSK, 8PSK, 16APSK, 32APSK |
|
Frequency Range |
950Mhz - 2150MHz -65Dbm ~ -25Dbm dc |
|
Input Symbol Rate |
DVB-S : 2~45 Msps / DVB-S2 : 1-~30 Msps (QPSK) / 10~30Msps (8PSK) 36Msps (16APSK) / 27Msps (32APSK) |
|
Signal Level LNB |
13/18V, Max 400mA, 22KHz Ver |
|
Supply LNB Switch |
1.0 / 1.1 /1.2/ USALS Compatible |
|
MPEG TS A/V Decoder |
|
|
Aspect Ratio |
4:3, 16:9 |
|
Audio Mode |
MPEG1 layer I/II, MPEG 2 layer II, AC3, Dolby Digital |
|
Audio Sampling Rates |
32, 44.1 and 48KHz |
|
Data Rate |
up to 15M bite/s |
|
Transport Stream |
DVB Compliant |
|
Video |
MPEG-2, MPEG-4, H.264 |
|
Video Formats |
PAL |
|
Video Resolution |
1920 x 1080P/i, 1280 x 720P, 720 x 576P/i |
|
Power Supply |
|
|
Input voltage |
AC 100V ~ 250V Frequency : 50Hz ~60Hz |
|
Power Consumption |
max 24W |
|
System Resources |
|
|
DDR DRAM |
127 Mbyte |
|
Main Processor |
32Bit Processor (550MHz, 850DMIPS) Flash ROM : 8Mbyte |
What's in the Box?
- 1 X STRONG Digital Satellite Receiver
- 1 X Remote Control & batteries
- 1 X Users Manual
- 1 x Set AV Leads
