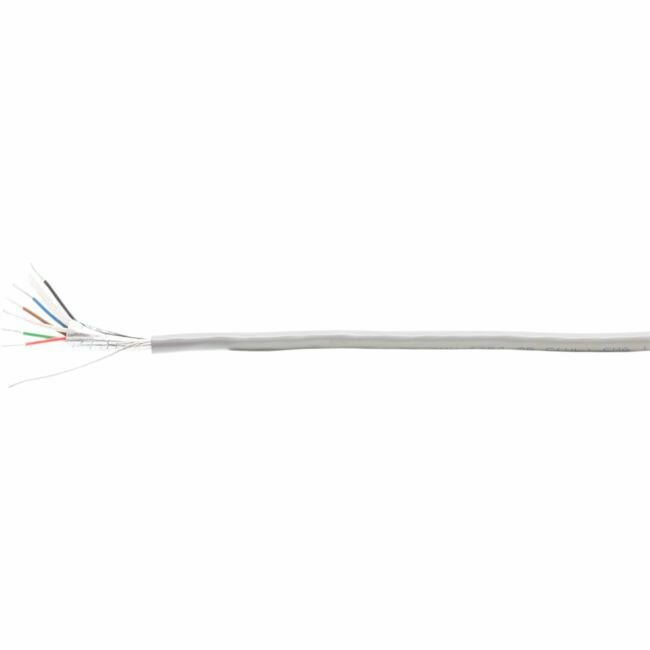

MULTICONDUCTOR CABLE RS232 -1M
Store
/
RP
/
CABLES & CABLE ACCESSORIES
/
CABLE (ROLLS & BOXES)
/
COMPUTER
Product Details
UPC:
BEL9536-R305-CE
Brand:
BELDEN
BELDEN - 9536 - CABLE 9536, 6CORE, PER M
Product Information
CABLE 9536, 6CORE, PER M
Reel Length (Metric): - 305
No. of Conductors: 6
Conductor Size AWG: 24AWG
Voltage Rating: 300V
No. of Max Strands x Strand Size: 7 x 0.2mm
Conductor Area CSA: 0.2mm²
Jacket Colour: Chrome
Jacket Material: PVC (Polyvinyl Chloride)
External Diameter: 5.31mm
Conductor Material: Copper
SVHC: No SVHC (16-Jun-2014)
Alpha Type Number: 6306 EQUIVALENT
Approval Bodies: CSA, SRPVC, UL
Belden Type Number: 9536
Cable Type: Foil Shield
Cable UL Style Number: UL2464
Conductor Make-up: 7 / 32AWG
Current Rating: 1.75A
Flammability Rating: VW-1
No. of Cores: 6
Operating Temperature Max: 80°C
Operating Temperature Min: -30°C
Outer Diameter: 5.31mm
Screen Type Primary: Aluminium Polyester
Secondary Insulation Colour: Chrome
Secondary Insulation Material: PVC
Wire Size: 24AWG
Data Sheet
