Dynabox barrier speaker enclosure for in ceiling speakers

DynaBox is a revolutionary acoustic barrier for in-ceiling speakers.

This revolutionary design makes the DynaBox extremely easy to retrofit through existing speaker openings or install in new construction.

DynaBox completely encases the speaker, which effectivelyreduces sound migration between rooms, ceilings and floors and projects more clear sound into the room.

DynaBox is ultraflexible which enables it to be completely collapsed for installation.

This revolutionary design makes the DynaBox extremely easy to retrofit through existing speaker openings or install in new construction.

DynaBox consists of a combination f flexible sound barrier vinyl, the SoundSnake acoustic decoupler and noise absorbing back-wave foam.

DynaBox effectively reduces sound migration between rooms, ceilings and floors.

Even the very best speaker will send the same sound into the wall structure as it does into the theater.

This migrating sound subtracts from your speaker’s sound quality, and can create annoying noise in adjacent rooms.

DynaBox acts as a moisture barrier for your speakers, and will drastically reduce unwanted noise migration into other rooms of the house, as well as dramatically improve the sound of every speaker





Key Advantages

• Reduce Noise Through Floors
• Diffuse Back-wave Distortion

• Provide Moisture Barrier

• Improve Sound Quality



Easy retrofit installation



DynaBoxSpeaker Enclosure

Part Number: 50306

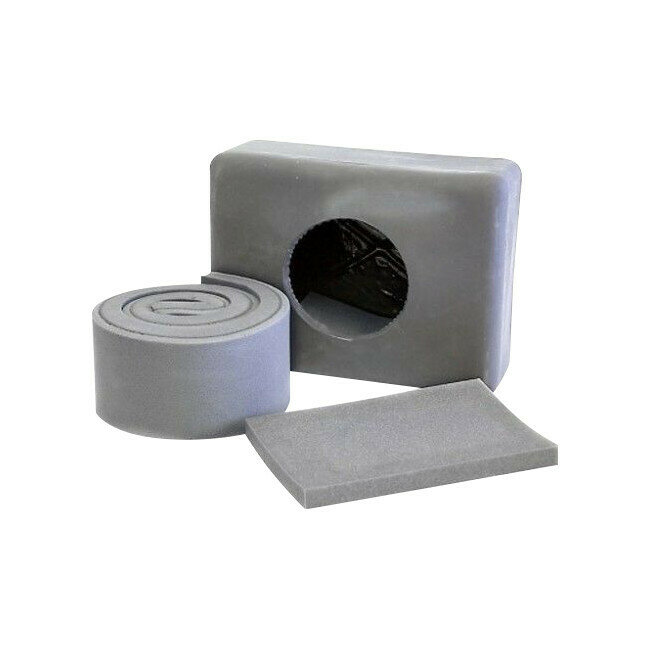

Contains:

• (1) DynaBox 17 x12 x6.5 inches
• (1) SoundSnake 1.5 x 5.5 x 54 inches
• (1) Back-Wave Foam 13.5 x 9 x 1 inch



Specifications

DYNABOX
Appearance	Black Flexivinyl Barrier
Color	Charcoal Gray
STC	28
Mass	1lb per square foot
Material Thickness	0.09 inches
Temperature Range (Resistance):	-40 ºF to +220 ºF (-40 ºC to +105 ºC )
Chemical Resistance	Resistant to water and mineral oils
Dimensions	17& x 12& x 6.5& (438mm x 311mm x 165mm)
SOUND SNAKE FOAM
Thickness	1.5& (38.1mm) total
Density	2.0 lb/ft3 (0.125 kg/m3)
Tensile strength	15 psi
Tear strength	1.9
Thermal Conductivity (R)	1.9 (hr-ft²-deg.F/BTU)
Standards	Meets UL94 HF-1
Temperature Range resistance	-40 ºF to +225 ºF (-40 ºC to +107 ºC )
DYNIL
Appearance	Black Flexivinyl Barrier
Color	Charcoal Gray
STC	28
Mass	1lb per square foot
Thickness	0.09 inches
Standards	Meets UL94-V0
Temperature Range (Resistance)	-40 ºF to +220 ºF (-40 ºC to +105 ºC )
Chemical Resistance	Resistant to water and mineral oils
BACK WAVE FOAM
Dimensions	13.5& x 9& x 1& (343mm x 229mm x 25mm)
Mass	0.16 lb/ft2 (0.78 kg/m2)
Density	2.0 lb/ft3 (0.125 kg/m3)
Tensile Strength	15 psi
Tear strength	1.9
Thermal Conductivity (R)	1.9 (hr-ft²-deg.F/BTU)
Standard	Meets UL94 HF-1
Temperature Range (Resistance)	-40 ºF to +225 ºF (-40 ºC to +107 ºC )
