METRE CODE:
Please note that this product is sold in ROLLS.
The product is also available in METERS. If you want to order the product in METERS, please use CODE 05052070
METRE CODE:
Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2x screening of aluminium tape covered with woven aluminium braid outer conductor.
1.05mm copper clad steel centre conductor
2x Aluminium 60% braid & 2x Sealed APA tape
Suitable for UHF, Pay, Satellite - Ø7.54mm Jacket
Attenuation (dB/100m):
4.538 @ 55MHz
8.522 @ 211MHz
12.828 @ 450MHz
18.254 @ 870MHz
19.642 @ 1000MHz
23.899 @ 1440MHz
29.673 @ 2150MHz
35.386 @ 3000MHz
Available in:

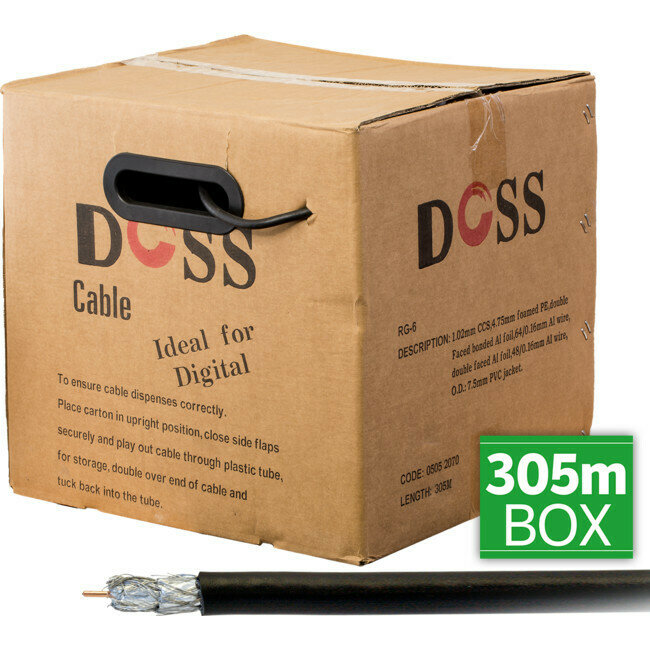

305 metre Dispensing Box, Wooden Reel with reversed metre marking (305x RG6QDB-1MT)
