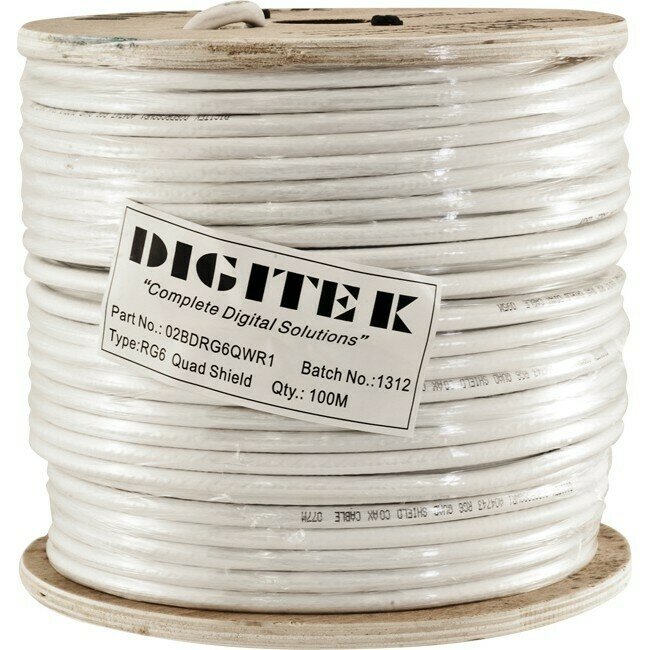

RG6Q CABLE WHITE - 100M

Name: RG6Q CABLE WHITE - 100M
Brand: DIGITEK
SKU: 5052074
Price: 57.2 AUD
Availability: OutOfStock

Store/RP/CABLES & CABLE ACCESSORIES/CABLE (ROLLS & BOXES)/COAX

Product Details

UPC: 02BDRG6QWR1

Brand: DIGITEK

RG6QW-100MT QUAD SHIELD CABLE WHITE - DIGITEK

RG6 Quad shield coax cable is recommended for FTATV, Satellite and analogue CCTV. Construction includes 4 layers of shielding (Aluminium Foil / Aluminium Braid / Aluminium Foil / Aluminium Braid) foamed PE dielectric and finished with a PVC jacket. Cable is reverse marked for you conveniance.

Specifications:

OBJECT	Coaxial Cable	Customer	Digitek Pty Ltd
GRADE	RG6 Quad Shield With Messenger
TEST ITEMS	UNIT	LIMITS		RESULT
Conductor	mm	1.02±0.01mm		Copper Cover Steel
Dielectric		Thickness	1.77mm	Foam polyethylene
		Diameter	4.57±0.05mm	Foam polyethylene
		AL Tape	Bonded	Aluminum/Poly tape/
Outer conductor		Braiding Coverage	0.16±0.005 x 64WIRE Coverage 60%	0.16mm Aluminium
		Dual AL TAPE	Nonbonded	Aluminum/Poly tape/ Aluminum
		Braiding Coverage	0.16±0.005 x 48WIRE Coverage 40%	0.16mm Aluminium
Jacket wall thickness		0.70mm		PVC UV
Diameter Over Jacket		7.2±0.05mm
Messenger * *Only with Part No. 02BDRG6QMR		1.30±0.01mm Steel*
Attenuation (1000MHz, 20 deg C)	dB/100m Network Analyzer	5 MHz	<1.9 dB
		55MHz	<5.3 dB
		211MHz	<10.0 dB
		270 MHz	<11.0 dB
		300 MHz	<11.6 dB
		330 MHz	<12.3 dB
		400 MHz	<13.6 dB
		450 MHz	<14.4 dB
		550 MHz	<16.2 dB
		750 MHz	<19.0 dB
		870 MHz	<20.6 dB
		1000 MHz	<21.80 dB
Sparker test	AVC		4000
Inner Voltage	V		3000	Conductor to shield
Impedance	ohms		75±3
Velocity propagation	%		82
V.S.W.R(Return loss)			<1.2 (>20 dB )	100% swept test
Insulation Resistance	Meg ohms		>1000 (20degC)
Capacitance	pF/m		53
