CTA845

Cable test adapter

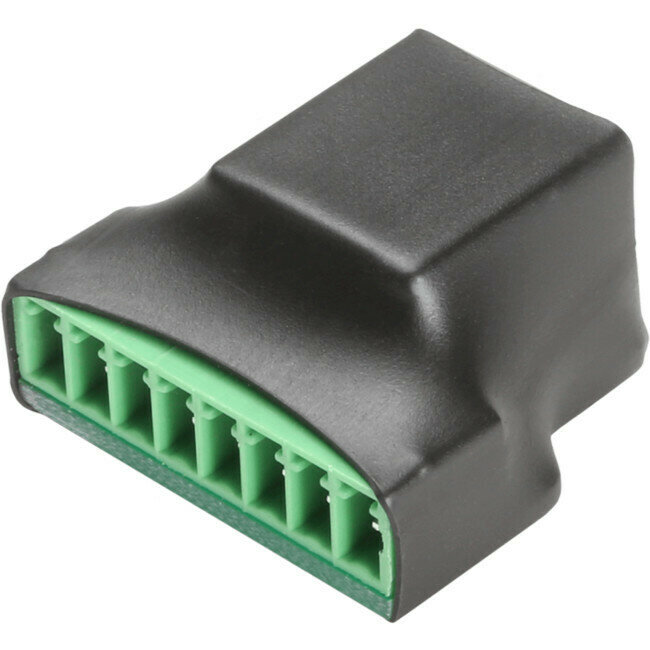

The CTA845 cable test adapter features a 8-pin terminal block connector (3.5 mm pitch) on one side and a female RJ45connector on the other side.

Both connectors are parallel connected, allowing twistedpair peripheral expansion cabling being tested with standardRJ45 cable testers.

This will avoid wrong wiring causing failure and damage to equipment.

Note:

& Installer needs to only purchases this unit once as part of their test equipment and then can be used multiple times for every future installation.&

• Cable Test adaptor, allows connection of terminated cable to standard RJ45 cable tester.

Used for MWX45, MWX65, WLI18, WMI18(and other Audac devices)
