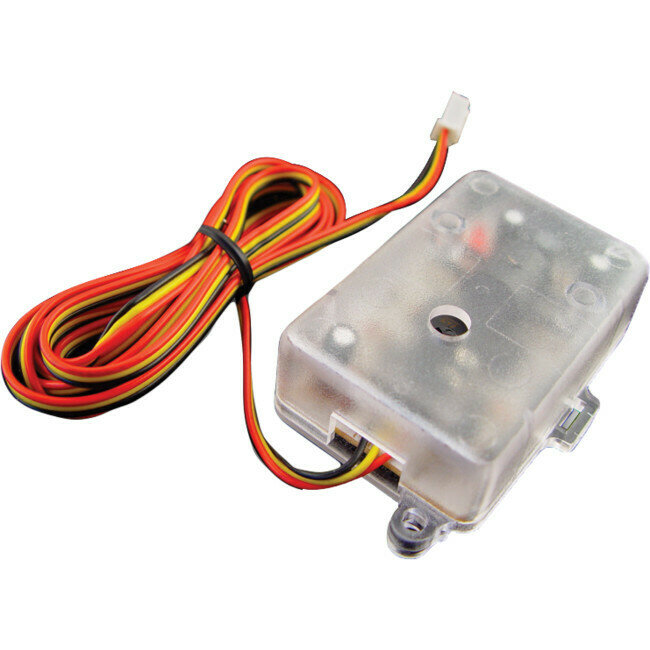

SEN-002 - SINGLE STAGE SHOCK SENSOR

Introduction

Single stage shock sensor is the simplest way to detectphysical impact against the car. Once the vibration level exceeds the set value, the alarm trigger signal is sent

Operation

• Electro-Mechanical activation
  Sensor detects any vibration exerted upon the vehicle. An intruder is detected when the vibration exceeds the set level
• Vibration Protection
  Shock sensors will protect glass. Intruder attempting tointerfere with either items will exert vibration upon the vehicle
• Temperature compensative circuitry
  Ensures sensitivity does not change as ambient temperature rises or falls
• Sensitivity adjustment
  Sensor allows installer to adjust sensitivity to providecompatibility with different size vehicles

Visual Output

• Trigger status indicator
  LED indicator shows when sensor is triggered (dual stage/zone sensors include one colour for each trigger)

Specifications

• Super low current draw
  1.3mA when idle, 13mA when triggered for 2 seconds
• Wide Operating voltage
  Operating voltage +9VDC to +15VDC
• Operating temperature
  -20 degrees to +85 degrees for equipment designed to be installed within vehicle cabin
• Polarity protection
  The system circuitry is design to protect itself againstaccidental battery polarity reversal. This can happen when replacing the vehicle battery
• Trigger output rating
  Each output of the sensor can sink 300mA, suitable for energising relay coil when necessary
• Trigger output is back EMF protected
  Clamping diode protects the output driver transistor(s) to stop damage from the super high voltages that occur when a relay coil is released
• Power Consumption
  Each additional sensor added to a system will increase it's over-all power consumption from the car battery. See the list of each sensor's power consumption.

Compatibility

• Compatible with Cyclops remote control systems
  Cyclops range of immobilisers/alarms : P355, P375, P375B, P385, P455, P485,P755, P775, P775B, P785, KE-CLR-TX90, KE-CLR-TX11, S35i, S35B, S35C, S75i, S75B, S455, S485 and S75C

Limitations

• All vibration is assessed
  False alarms are possible if sensitivity is too high, cats jumping on bonnet or passing traffic could trigger sensor. Adjust when necessary, or else look at SEN-006, Dual zone fuzzy logic sensor.

Warranty

• Manufacturers warranty
  Guarantees product is free from manufacturing defects for 12 months from time of purchase

Standards Compliance

• Manufactured in ISO9001 facility
  Built within world standard production facility
