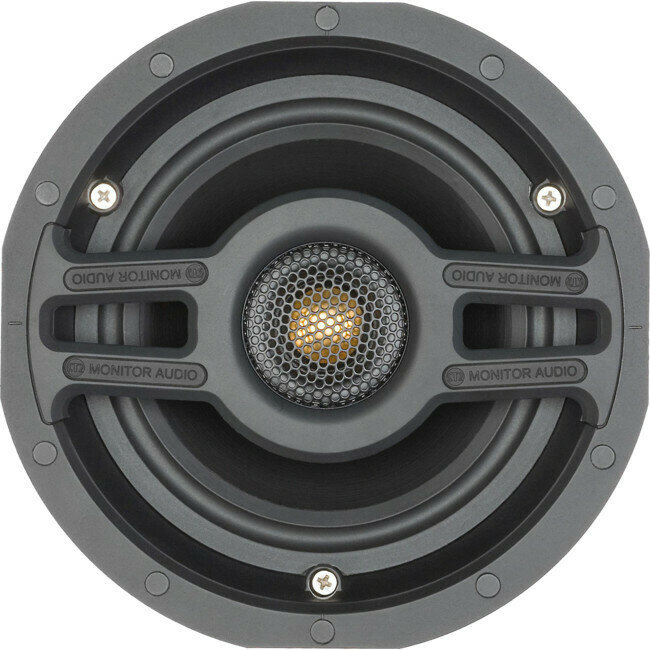

The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.
Offering superlative dynamic delivery in a super-discreetformat, the CS160 will deliver fabulous full-range sound with stealthy versatility.
Also available with a square grille ( special order )
Metal Matrix Polymer driver cones have a polypropylene base loaded with metallic particles to offer a rigid and responsive structure.
They are manufactured using a sophisticated high-pressureinjection process, which modulates cone thickness at critical points to optimise stiffness and consistency, resulting in a superior sonic performance.
The Gold Dome tweeter is formed from a ceramic-coated aluminium/magnesium alloy, gold anodised to a specific thickness for ideal stiffness and damping characteristics.
Its new profile and surround geometry have been developed using advanced modelling tools, to provide the optimum qualities for accurate sound reproduction.
Frequency response | 60 Hz – 30 kHz |
Nominal Impedance |
6 ohms |
Sensitivity (1W@1M) | 88 db |
Maximum SPL | 107.2 dBA |
Power Handling (RMS) | 70 W |
Recommended Amplifier Requirements | 15– 70 W |
Drive Unit Complement | 1 x 6"MMP IIcone bass driver. 1 x 1" (25 mm)C-CAMpivoting Gold Dome tweeter |
Acoustic Configuration | 2 way |
Overall Dimensions (Including Grille (H x W)) | Round: 204.2 mm (81/16") Square: 199.2 x 199.2 mm (713/16 x 713/16") |
Mounting Depth | 99 mm (37/8”) |
Cut-Out Hole Diameter | 170 mm (611/16”) |
Fixing Type | 3 positionTri-Gripdog fixings |
Connection | Gold plated ‘push’ type terminals |
Grille attachment | Magnetic |
Construction Material | Mineral filled ABS, RoHS compliant |
Weight | 2.10 kg (4 lb 10 oz) |
Pre- Construction bracket | CB5Pre-Construction Bracket(Blue) |
Back Box | CCBOX-R|CMBOX-R |
