Features:
• Support three in
• Dual Display
• Operates 0-40 degree
• 24/7 certified
• Dual Intel Gigabut LAN
• Multio I/O includes dual serial

FORM FACTOR
1.3L chassis

PROCESSOR
Support Intel Skylake Core i3/i5/i7, Pemtium, Celeron CPU max. TDP 65W

CHIPSET
Intel H170 Express chipset

MEMORY
2 x 204 pin DDR3L SODIMM slots,16GB per DIMM (Max 32GB)
Dual Channel DDR3L 1600 Mhz

VIDEO OUTPUT
1x HDMI + 2x DisplayPort Support triple independent display
4K/2K playback (Dual channel memory recommended)
Integrated in CPU (Intel HD 530 Graphics)

AUDIO
Realtek ALC662 channel High Definition Audio

ETHERNET
Intel i211+i219LM Dual Lan
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
Support Teaming function

STORAGE INTERFACE
SATA 6.0Gb/s interface

ONBOARD CONNECTORS
1x SATA 6 connectors
1x SATA power connector
1x 4pin fan connector
1x D-sub connector
1x Front audio header
1x 2x5 pin USB header
1x Auto power on header

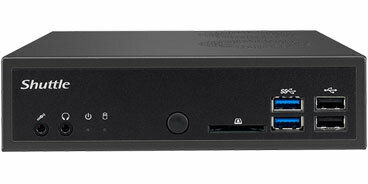

FRONT PANEL
2x USB 3.0 ports
2x USB 2.0 ports
1x Microphone-In
1x Earphone-Out
1x Power-On button
1x Power LED
1x HDD LED
1x SD Card reader

BACK PANEL
2x RJ45 Gigabit LAN port
2x Display port
1x HDMI port
2x USB 3.0 ports
2x USB 2.0 ports
1x RS232*
1x RS232/RS422/RS485*
1x External power on/Clear CMOS header
1x DC in
1x Kensington lock
2x Wireless Antenna fixture

DRIVE BAYS
1x 2.5' HDD / SSD bay


DIMENSIONS
190(L) x 165(W) x 43(H) mm

POWER
90W Power Adapter
Input:100- 240V AC
Output: 19V 4.47A DC

ACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA mount quick installation guide
1* Power cord
1* SATA cable
Screws
Optional 802.11b/g/n WLAN module

EXPANSION SLOT
1x M.2 2260 Type M key socket
1x Half size Mini-PCIE socket


OS SUPPORT
Windows 10
Windows 8.1
Windows 7
Linux

REMARK
*RS232 ports support totally 500mA, 0/5/12V output. Voltage setting please refer to Quick Guid
