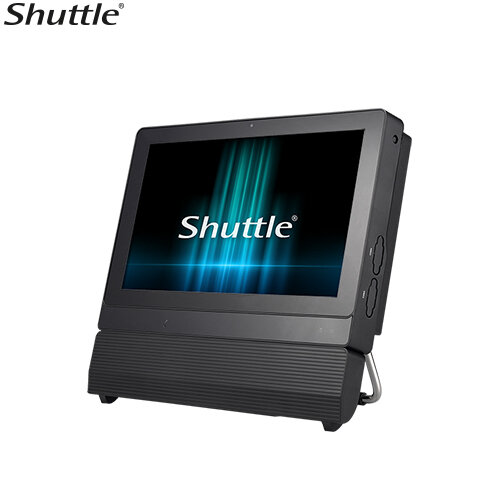

FORM FACTOR Shuttle AIO form factor
PROCESSOR Intel Kabylake-U Celeron 3865U 15W CPU
MEMORY Support DDR4 2133Mhz memory Max. 32G
VIDEO OUTPUT Intel® HD Graphics
AUDIO Realtek ALC269 HD
2W x 1 Mono speaker
ETHERNET Intel i211
Realtek RTL8723BE
10MB/s,100MB/s, 1000MB/s
Support Wake-On-LANã€Wake on WLAN function
STORAGE INTERFACE 2.5' SATA3 device bay x 1
FRONT PANEL Power LED
HDD LED
Microphone
HD webcam
BACK PANEL DC in
USB2.0 port x 2
LAN X 1
USB3.1 Gen1 port x 2
HDMI x 1
MIC in X 1
Headphone X 1
RJ11 X 1 (optional)
D-sub X 1
COM port X 2
DIMENSIONS 299 x 203 x 50 (mm)
Dimension drawing
POWER Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC
65W 19V Adapter bundled
ACCESSORIES Quick Guide x 1
Driver DVD x 1
65W Power Adapter x 1
power cord x 1
EXPANSION SLOT (1) M.2 2280 Type B,M key socket
LCD Panel 11.6' 16:9 Wide Panel, 1366 x 768 pixels
Touch screen Multi touch (gloved-touch support)
Web Cam HD
Mic Electret Condenser Microphone
Left Side Power-on button
USB2.0 port x 2
SD card reader x 1
Clear CMOS
Kensington lock
Right Side COM port x2 (optional)
Wireless LAN Realtek RTL8723BE
Card Reader SD Card Reader
Net Weight 2.47kg
OS SUPPORT WINDOWS 10
