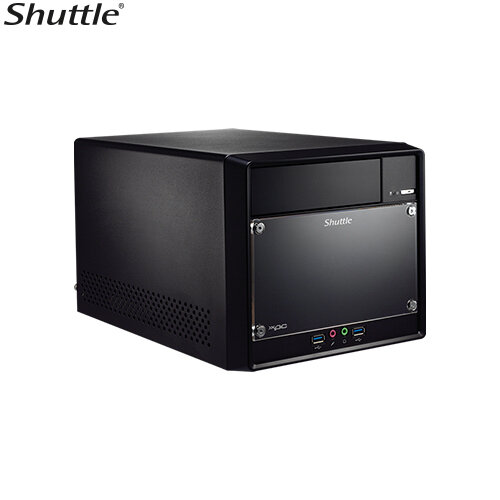

Scalability and performance – more affordable than you might expect. The Shuttle SH310R4V2 is an entry-level mini PC supporting the latest 8th gen Intel® processors. Featuring up to 6 cores, 12 threads, along with integrated UHD graphics, the SH310R4V2 has more power to handle demanding 4K workflows.

FORM FACTOR
Shuttle Form factor

PROCESSOR
Support Intel® 8th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron®95W LGA1151v2 CPU

CHIPSET
Intel H310 Express chipset

MEMORY
(2)DDR4 2400/2666 MHz support, dual channel up to 32GB (16GB*2)

VIDEO OUTPUT
(1)HDMI + (1)DisplayPort(1)+ (1)VGA support Dual independent display 4K playback
Integrated in CPU

AUDIO
Realtek ALC662
5.1 Channel HD audio support

ETHERNET
Intel Chip i219LM
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-on-LAN function

STORAGE INTERFACE
SATA 6.0Gbs interface

ONBOARD CONNECTORS
(2) 4 Pin fan connector
(3) SATA 6.0 connector
(1) ATX main power (2*10)
(1) ATX 12V power (2*2)
(1) RS232 header
(1) Low Pin Count header
(1) Front AUDIO header
(1) Front USB3.1 FFC connector header
(1) 1X4 USB 2.0 wafer

FRONT PANEL
(2) USB 3.1 Gen 1 port
(1) Microphone-In
(1) SPK-Out
(1)Power button
(1)Power led
(1)HDD Led

BACK PANEL
(2) USB 3.1 Gen 1 port
(4) USB 2.0 port
(1) DisplayPort
(1) HDMI port
(1) VGA port
(1) LAN
(1)Audio Line in
(1)Audio Line out
(1)Audio MIC in
(1) CMOS clear button
(3)Antenna Hole
DRIVE BAYS
(1) 5.25' ODD bay
(2) 3.5' HDD bay
Support a maximum 2.5' HDD(or SSD)of three, if use accessory PHD3

DIMENSIONS
329(L) x 216(W) x 198(H) mm
Dimension drawing

POWER
80 Plus 300W power supply
Input:100 - 240V AC
Support 80 PLUS Bronze

ACCESSORIES
XPC Multi-Language quick guide
XPC DVD Driver
CPU Thermal Grease
Power cord
Screw package

EXPANSION SLOT
(1) PCI-E X16 Gen3.0 slot
(1) PCI-E X1 Gen2 slot
(1) M.2 2280 type M key socket
(1) M.2 2230 type E key socket

OS SUPPORT
Windows 10 64bit
Linux
