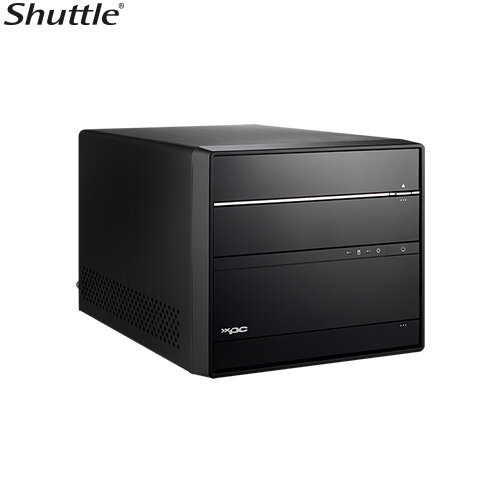

FORM FACTOR
Shuttle Form factor

PROCESSOR
Support Intel® 8th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron®95W LGA1151v2 CPU

CHIPSET
Intel H370 Express chipset

MEMORY
(4)DDR4 2400/2666MHz support, dual channel up to 64GB (16GB*4)

VIDEO OUTPUT
(1)HDMI + (2)DisplayPort support triple independent display 4K/60Hz playback
Integrated in CPU

AUDIO
Realtek ALC662
5.1 Channel high definition audio

ETHERNET
Intel i211
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function

STORAGE INTERFACE
SATA 6.0Gb/s interface

ONBOARD CONNECTORS
(2)4 Pin fan connector
(4)SATA 6 connector
(1) ATX main power (2*10)
(1) ATX 12V power (2*2)
(1) 2X5 USB 2.0 header
(1) RS232 header
(1) Low Pin Count header
(1) Front AUDIO header
(1) Front USB2.0 header
(1) Front USB3.1Gen1 header

FRONT PANEL
(2) USB 2.0 Port
(2) USB 3.1 Gen 1 Port
(1) Microphone-In
(1) SPK-Out
(1) Power LED
(1) HDD LED
(1) Power-On button

BACK PANEL
(2) USB 2.0 Port
(2) USB 3.1 Gen 1 Port
(4) USB 3.1 Gen 2 Port
(1)LAN
(1)HDMI port
(2)Display port
(1)Audio Mic in
(1)Audio Line in
(1)Audio SPK out
(1)Clear CMOS button
(3)Antenna Hole

DRIVE BAYS
(1) 5.25' ODD bay
(2) 3.5' HDD bay
Support 2.5' HDD x2 or 4, if use accessory PHD3 x1 or 2

DIMENSIONS
332.1(L) x 215.2(W) x 190.1(H) mm
Dimension drawing
POWER
80 Plus 300W power supply
Input:100 - 240V AC
Support 80 PLUS Bronze

ACCESSORIES
XPC Multi-Language quick guide
XPC DVD Driver
SATA Cable
CPU Thermal Grease
Power cord
Screw package

EXPANSION SLOT
(1) PCI-E X16 Gen 3.0 slot
(1) PCI-E X4 Gen 3.0 slot
(1) M.2 2280 type M key socket
(1) M.2 2230 type E key socket

OS SUPPORT
Windows 10 64bit
Linux
