*****BAREBONE CHASSIS*****

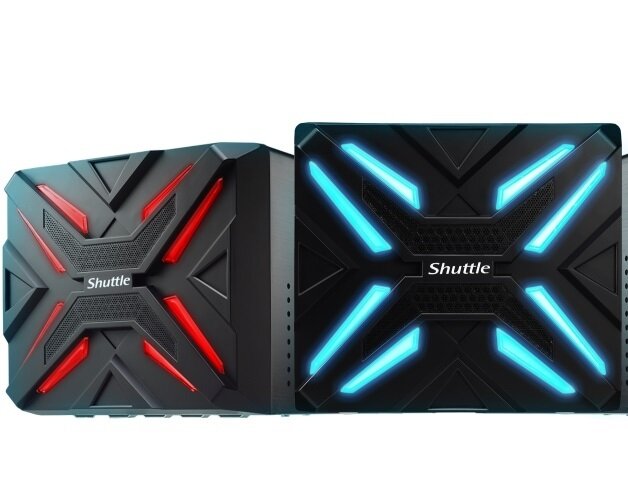

Shuttle SZ270R9 XPC Cube - 4K UHD 3xDisplays Z270 LGA1151 4xDDR4 HDM 2xDP 1xPCIex16 2xM.2 4x3.5' HDD RAID Dual Intel GbE LAN WoL 500W 80+ Silver PSU

New Mini PC packs 4K and High-end VGA cards with Kabylake platform
The SZ270R8 with a stylish aluminum chassis is three times smaller than tower PC with impressive expansion capability and storage capacity at a compelling price. With a new internal design, the SZ270R8 can support large-format dual-slot graphics

FORM FACTOR Shuttle Form factor
PROCESSOR Support Kabylake/Skylake 95W Core i3/i5/i7 LGA 1151 CPU processor
CHIPSET Intel Z270 Express chipset
MEMORY (4) DDR4 2133/2400MHz support dual channel up to 64GB (16GB*4)
VIDEO OUTPUT Integrated in CPU
AUDIO Realtek ALC662
5.1 channel High Definition Audio
ETHERNET Intel Chip i211*2
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-ON-LAN function
STORAGE INTERFACE SATA 6Gb/s
ONBOARD CONNECTORS (2) 4 Pin fan connector
(4) SATA 6.0 connectors
(1) ATX main power (2*10)
(1) ATX 12V power (2*2)
(1) RS232 header
(1) Front USB3.0
(1) Front AUDIO header
(1) 2x5 pin USB header
FRONT PANEL (2) USB 3.0 Port
(1) External microphone jack
(1) External headphone jack
Power button
Power led
HDD Led
BACK PANEL (4) USB 2.0 Port
(4) USB 3.0 Port
(1) Line in jack
(1) Line out jack
(1) Audio MIC in
(1) HDMI
(2) LAN
(1) CMOS clear button
(2) DisplayPort
(3) Antenna hole
DRIVE BAYS (4) 3.5' HDD bay
*Support up to 8*2.5' HDD by using 4*PHD3 HDD rack when system extra SATA or RAID card
DIMENSIONS 332(L) x 216(W) x 198(H) mm
POWER 80 Plus 500W power supply
Input:100 - 240V AC
Support 80 PLUS silver
ACCESSORIES XPC Multi-Language quick guide
XPC DVD Driver
SATA cable x4(For HDD)
CPU Thermail Grease
Screw package
EXPANSION SLOT (1) PCI-E X16 slot
(1) PCI-E X4 slot
(2) M.2 2280 type M socket
(1) M.2 2230 type A,E key socket
OS SUPPORT Windows 7 & Embedded series O.S
Windows 10 & Embedded series O.S
Linux
