Features:
• Fanless Design
• Support up to 8 COM ports
• Support 4K Ultra HD
• Support Dual Displays
• Support HEVC/H.265 high-definition video playback
• Built-in two M.2 expansion slots
• Operable in 0-40 â°C
• Support Intel® Dual Gigabit LAN
• 24/7 Nonstop Operation
• VESA Mount-Ready
FORM FACTOR
Mini-ITX MB
3.5 L chassis
PROCESSOR
Intel Celeron J3355 10W CPU
CHIPSET
Intel Apollo Lake SoC platform
MEMORY
2x DDR3L SO-DIMM slots 1866MHz support, dual channel up to 8GB
VIDEO OUTPUT
HDMI + VGA port dual display
Integrated in CPU
AUDIO
Realtek ALC662 2.1 channel High Definition Audio
ETHERNET
Intel i211 Gigabit Ethernet
Support Wake-On-LAN function
STORAGE INTERFACE
SATA 6Gb/s bandwidth
EXPANSION SLOT
1x M.2 2280 Type M key socket
1x M.2 2230 Type A,E Key socket

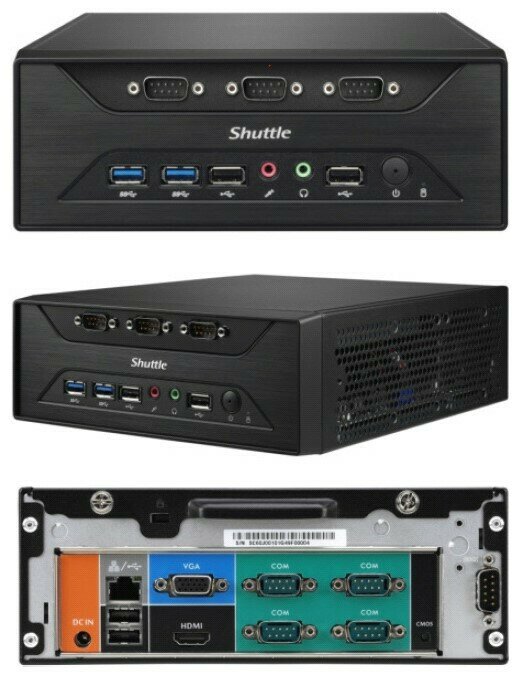

FRONT PANEL
2x USB 2.0 ports
2x USB 3.0 ports
3x RS232
1x Microphone-In
1x Earphone-Out
1x Power-On button
1x Power LED
1x HDD LED
BACK PANEL
1x RJ45 Gigabit LAN port
1x VGA
1x HDMI
2x USB 2.0 ports
4x RS232
1x RS232/RS422/RS485
1x Clear CMOS button
1x DC in
2x Wireless Antenna fixture
DRIVE BAYS
1x 3.5'/2.5' HDD/SSD bay
DIMENSIONS
238(L) x 200(W) x 72(H) mm
POWER
Input:100- 240V AC
19V/3.42A or Output: 12V/5.41A DC
65W 19V Adapter bundled
ACCESSORIES
1x XPC Quick Guide
1x XPC DVD Driver
1x Power cord
1x 65W Adapter
1x Screw pack
Power cord
