Drive bay: turn 3×5.25' drive bay to 5×3.5' hot-swap drive bay

Interface: SATA to SAS,SAS to SAS

Fan sensor: Fan failure sensor

Alarm: overheating alarm

Cooling system: 1×80mm ball baring fan with air duct providing excellent cooling air flow

RAID: support RAID 0,1,5,6,10 functions( Raid card required)

Power connector: 2×4-pin molex power connector

Data connector: 5×SATA( I or II or III) /SAS data port

Dimension(L×W×H): 22×13×15 inch

Weight: 5.5 lbs

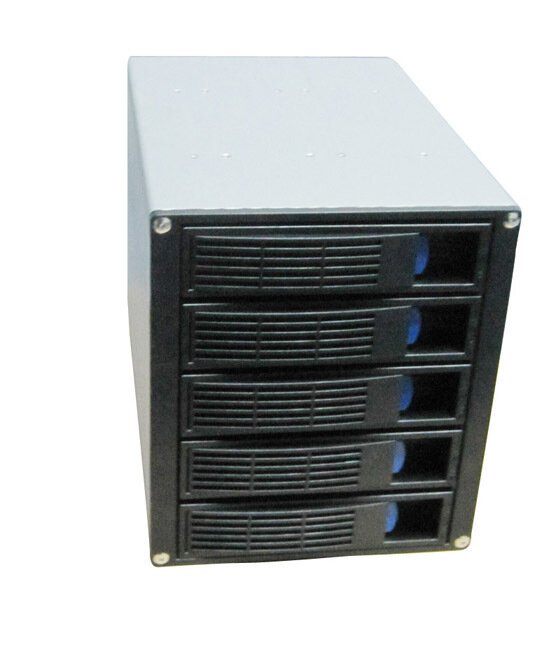

5×3.5' Hot-swap HDD trays Hot-swap module

Supporting 5 Bay SATA-I (or SATA-II) /SAS Hot-swap

Steel material, ROHS compliance

Electromagnetic shield design

Redundant 4-pin molex power connectors

Support hot-swap

Supporting all operating systems

Ball bearing fan with air duct

Supporting RAID 0,1,5,6,10 functions( Raid card required)
