DESCRIPTION

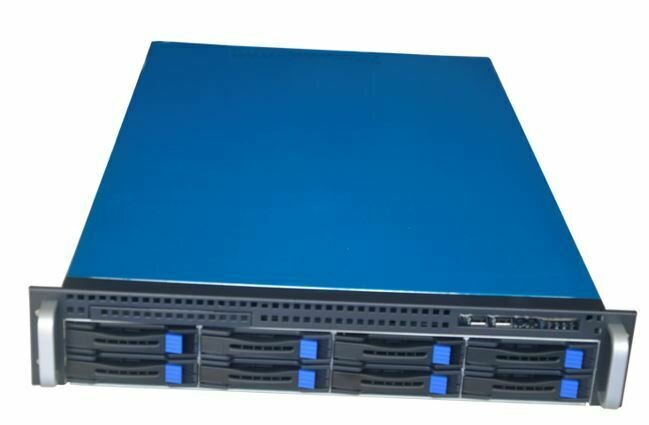

TGC-2808 is an industrial-quality 2U server chassis suitable for 19" server cabinet.
This chassis comes with 8 Hot-swap HDD drive bays (Mini SAS) and 2 x USB2.0 port on the front panel. Supports up to EEB (12" x 10.5") motherboard. It is equipped with 4 x hot-swappable mid-mounted 80mm cooling fans for ventilation as standard.

Chassis size 590×482(430.4)×88(D×W×H)mm

HDD 3.5"hot-swap×8 +1* fixed 3.5"or 2*SSD)

CD-ROM 1* slim 5.25"

back plane 1*mini SAS

PSU 2U or redundant 1+1

MB Max 12"×10.5"

Fan 4pcs middle

Steel 1.2mm

USB USB2.0 X 2
