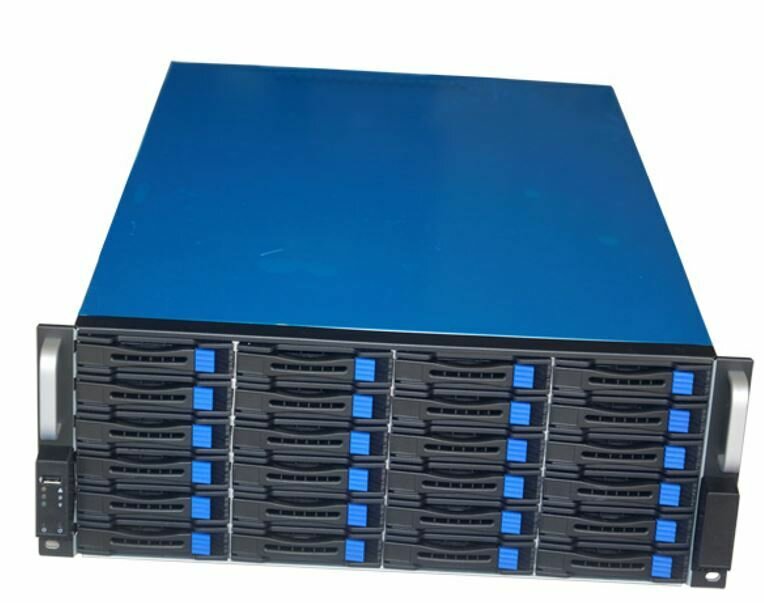

TGC-4824S is an industrial-quality 4U server chassis suitable for 19" server cabinet
This chassis comes with 24 Hot-swap HDD drive bays (Mini SAS) and 1 x USB2.0 port on the front panel. Supports up to EEB (12" x 10.5") motherboard. It is equipped with 3 x hot-swappable mid-mounted 12038 ball-bearing fans and 2 x fixed rear-mounted 80mm ball-bearing fans for ventilation as standard.
Chassis size 590×482(430.4)×177(D×W×H)mm
HDD 3.5"hot-swap×24+1* fixed 3.5"or 2*SSD)
CD-ROM 0
back plane 1*mini SAS
PSU 2U or redundant 1+1 or ATX
MB Max 12"×10.5"
Fan 3pcs middle,2pcs rear
Steel 1.2mm
USB USB2.0X2
