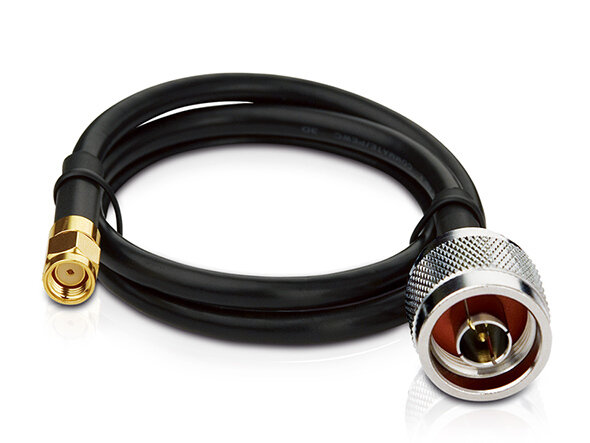

TP-Link TL-ANT200PT 0.5M Low-loss N-Type Male to RP-SMA Male Pigtail Cable

TP-Link TL-ANT200PT 0.5M Low-loss N-Type Male to RP-SMA Male Pigtail Cable

Store/Network/Network - Consumer/Antennas
SKU TL-ANT200PT
AU$14.73
1
Save this product for later
Share this product with your friends
ShareSharePin it

TP-Link TL-ANT200PT 0.5M Low-loss N-Type Male to RP-SMA Male Pigtail Cable

Store/Network/Network - Consumer/Antennas
Product Details
UPC: 6935364052249
Brand: TP-LINK
TP-Link TL-ANT200PT 0.5M Low-loss N-Type Male to RP-SMA Male Pigtail Cable

Compliant with 2.4GHz 802.11 n/g/b & 5GHz 802.11 n/a
Weatherproof cable designed for outdoor exposure
Manufactured using 0.5m low loss cable providing better performance in the 5GHz & 2.5GHz applications and suitable for the same use as LMR®-200[1]
N-Type Male to RP-SMA Male connector, applicable in most connections between wireless AP/Router and antenna

ANTENNA
Frequency DC~6GHz
Impedance 50Ω Nominal
Insertion Loss 2GHz 0.7dB
2.5GHz 0.8dB
3GHz 1.0dB
5GHz 1.2dB
5.5GHz 1.3dB
6.0GHz 1.4dB
VSWR(MAX.) 0~3GHz: 1.5:1 Max
3~6GHz: 1.6:1 Max
Connector Type N-Type Male to RP-SMA Male
Operating Temp. -10℃~+60℃
Storage Temp. -40℃~+80℃
Length 0.5m(1.64ft)
