TP-Link TL-ANT2424MD 2.4GHz 24dBi 2×2 MIMO High-gain Directional Dish Antenna Long Distance Point-to-Point Bridge Weatherproof Pole Mount ~TL-ANT5830M

Store/Network/Network - Consumer/Antennas
Product Details
UPC: 6935364091958
Brand: TP-LINK

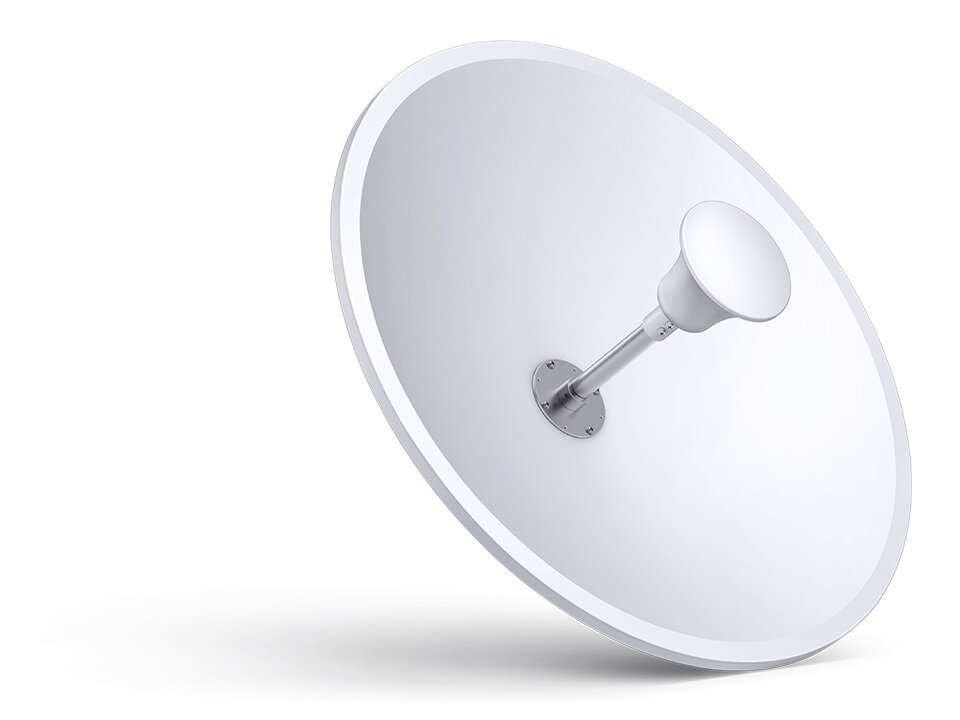

TP-Link TL-ANT2424MD 2.4GHz 24dBi 2×2 MIMO Dish Antenna

High-gain directional antenna provides long distance Point-to-Point bridge and network backhaul
Easy installation and seamless integration with the Pharos Base Station WBS210
MIMO technology ensures increased throughput
Weatherproof design offers protection in harsh environments

Product Overview
The Pharos Dish Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station.
This antenna features high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Point data transmission.

Common Deployment Goals
When installed alongside a Pharos Base Station, the TL-ANT2424MD is capable of providing long distance Point-to-Point bridge and network backbaul.

Easy Installation
TP-LINK dish antennas feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.

ANTENNA
Frequency 2.3 ~ 2.7GHz
Impedance 50Ω
Gain 24dBi(Exclude Cable Loss)
VSWR(MAX.) 1.8
HPOL Beamwidth 6° (3dB)
VPOL Beamwidth 6° (3dB)
Elevation Beamwidth 6° (3dB)
Polarization Horizontal & Vertical
Mounting Pole Mount
F/B Ratio 32dB Min
Survival Wind Speed 241 Km/h
Standards RoHS, WEEE
Interfaces RP-SMA
Dimension Product Size: 650×650×360 mm
Package Size: 790×710×200 mm
