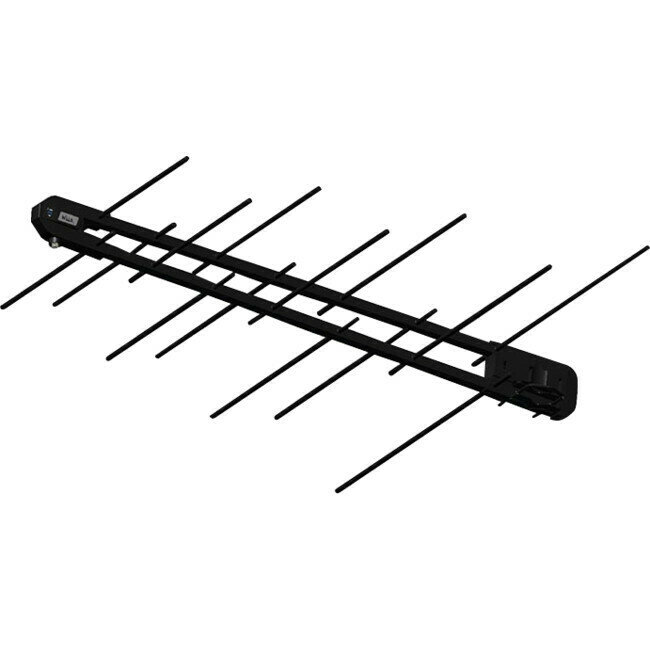

Tru-Band VHF &Black Arrow' 4G Antenna - HILLS

Tru-Band™ antennas are a revolutionary new VHF Only (Band3 or Block A) antenna for Australian capital cities that have been designed for the digital-only TV environment.

Hills understand the potential for 4G/LTE interference with its range of Tru-Series antenna's in certain installations areas and conditions.

Supporting our product Hills are introducing a range of products which are included with 4G filtering on selected Tru-Series Antennas allowing you the best performing installation and system possible regardless of location or 4G proximity.

{tab Features}

• Designed for the precise digital frequency bands for true HD performance
• BoomLock™ manufacturing technology - patented by Hills
• Sensational all-black finish for low visual impact
• New mounting clamp for quicker and safer installation
• Channels 6 - 12
• Matched balun for best MER performance and lowest insertion loss
• Ultrasonically sealed balun prevents water ingress formaximum reliability
• Strong mechanical construction
• Lightweight and compact
• Fully designed and manufactured in Australia. Registered design

4G Filtered Customer Benefits:

• To reject LTE/4G services that could cause interference with current Digital TV broadcasts
• With one integrated product it will eliminate the needto purchase separately a in-line filter
• greater than 50dB rejection of the LTE frequencies

These antenna’s are most likely to be installed in a metropolitan location where the density of 4G/LTE usage will be at a peak and so the extra rejection of a filter will significantly increase the interfering signal attenuation.  This has been implemented inside the standard balun housing with changes to the current PCB circuit/layoutetc. designed with an included on-board 4G/LTE (694MHz) low pass filter to prevent any type of out-of-band interference.
