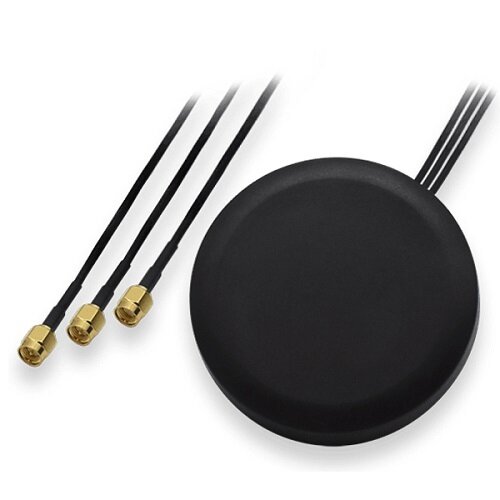

Teltonika Combo SISO Mobile/GNSS/WIFI Roof SMA Antenna

GNSS Antenna

Frequency Range: 1575.42-1610 MHz
Polarization RHCP
Impedance 50 Ω
LNA Gain 28 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 2.7-5 ±0.5 VDC
Current Consumption < 15 mA
LNA V.S.W.R <1.65
Connector SMA Male

LTE Antenna

Frequency Range: 850/900/1800/1900/2170 MHz
Bandwidth ±90/280 MHz
Polarization Vertical
Gain 3.5 dBi
V.S.W.R: <1.5:1
Impedance: 50 Ω
Connector: SMA Male
WiFi Antenna
Frequency Range: 2350-2500 MHz
Bandwidth ±100 MHz
Polarization Vertical
Gain 2.5 dBi
V.S.W.R: <1.5:1
Impedance: 50 Ω
Connector: RP SMA Male

Mechanical/Environmental

Mounting Method: Screw
Radome Ingress Protection rating: IP67
Radome Material: ABS
Weight: <250g
Housing Dimensions: Ø 80x15 mm
Cable: 3x RG174, 3000 mm
RoHS Compliant: ✔
