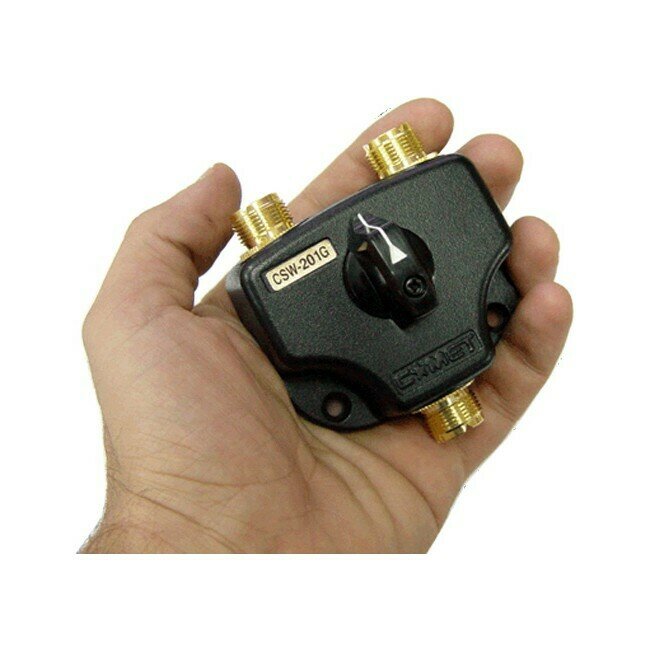

CSW201G UHF 2WAY MANUAL COAXIAL SWITCH FOR DC 600MHZ BENELEC

The CSW-201G switch is manual, double contact coaxial switch for switching high
frequency signals on a line of 50 Ω.

FEATURES:

This coaxial switch have been designed with special emphasis on high frequency characteristics for use with highfrequency signals

• Wide frequency range

• Low SWR

• Negligible insertion loss

• The connectors are gold plated to reduce the contact resistance

• It has a high withstand voltage and will not produce heat


SPECIFICATIONS:

• Frequency Range: DC~600MHz Impedance: 50Ω

• Insertion Loss: DC~600MHz 0.12dB VSWR: DC~600MHz 1.2

• Isolation: DC~500MHz 60dB Connector: M-J

• Switching Circuit: Single pole 2 output position

• Rating Power: 1,500W (PEP) @ DC~30MHz / 1,000W (PEP) @ 30~150MHz /

• 500W (PEP) @ 150~600MHz

• Dimensions: 72 (L) x 78 (W) x 47 (H) mm
• Weight: 430g
