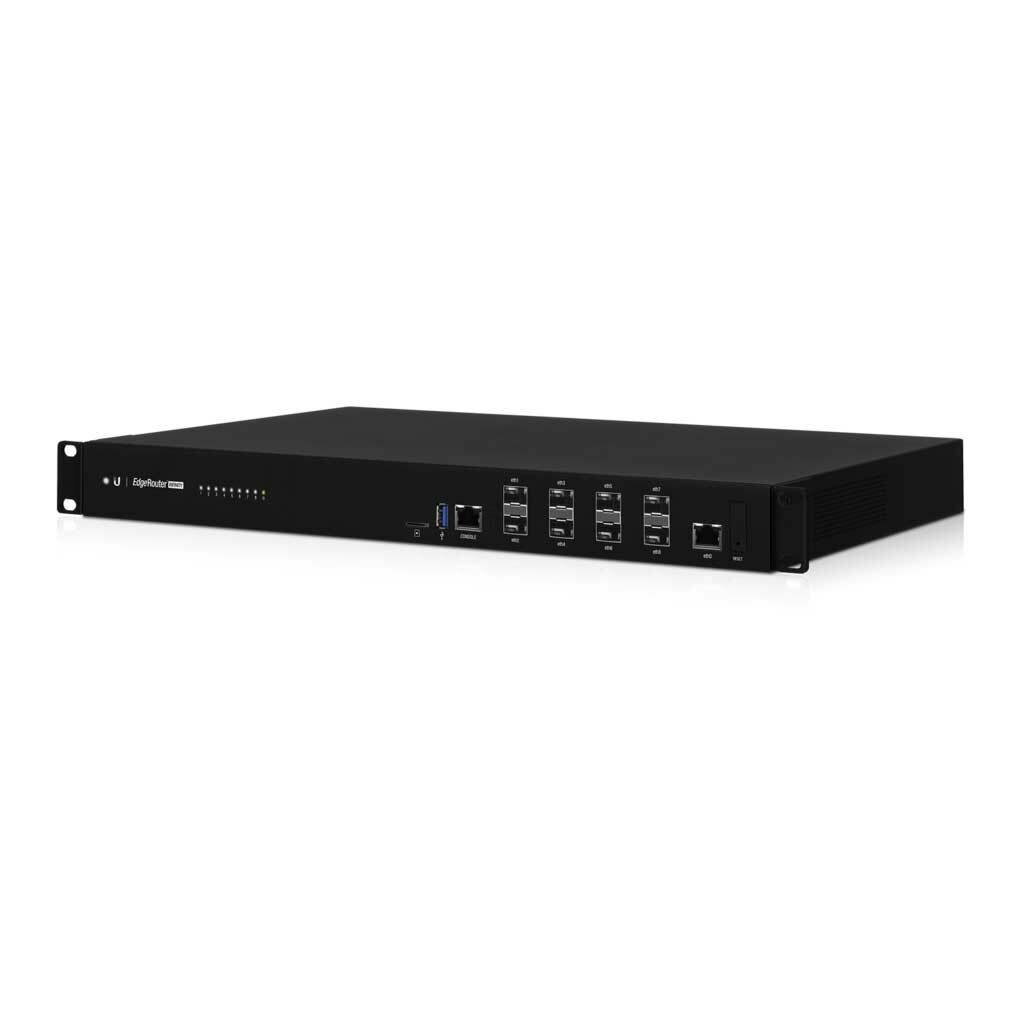

Ubiquiti EdgeRouter Infinity, 8 port 10G SFP+ Router
The EdgeRouter Infinity combines 80 Gbps aggregate throughput with price/performance value in a compact rackmountable form factor. Eight SFP+ ports offer 10G fiber connectivity, and a Gigabit Ethernet RJ45 port offers copper connectivity. The EdgeRouter Infinity includes primary and backup AC/DC power supply modules for redundancy. It supports scalable configuration using EdgeOS or the Ubiquiti Network Management System (UNMS).
- (8) 10G SFP+ Ports and (1) Gigabit Ethernet RJ45 Port
- Hot-Swappable Modular Power Supplies
- 16-Core, 1.8 GHz Processor
- Rackmountable
Dimensions 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72')
Weight Without Mount: 4.950 kg (10.91 lb)
With Mount: 5.045 kg (11.12 lb)
Max. Power Consumption 100W
Power Method 110 - 240VAC
Power Supply (2) Hotswappable AC/DC PSU
Supported Voltage Range AC Input: 100 to 240VAC
Button Reset
Processor MIPS64 16 Core 1.8 GHz
System Memory 16 GB DDR4 RAM
On-Board Flash Storage 8 MB NOR Flash 4 GB eMMC NAND Flash
LEDs System: Status
SFP+ Data Ports: Link/Activity
RJ45 Data Port: Link/Activity
Interfaces Serial Console Port: (1) RJ45 Serial Port
Data Ports: (1) RJ45 Serial Port, (8) SFP+ Ports (1) RJ45 Gigabit Ethernet Port
Certifications CE, FCC, IC
Rackmount Yes
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 - 95% Noncondensing
