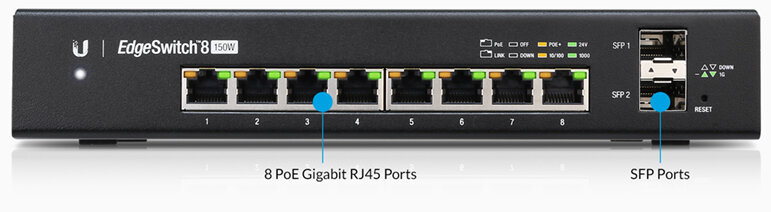

•8 RJ45 GbE ports with PoE output support (both 802.3af/at and passive 24V) and two 1G SFP ports
•Fanless design with removable mounting ears
•Same features as existing EdgeSwitch models (extensive L2 features and basic L3 features)
•Full line-rate performance for all ports simultaneously (i.e., 10 Gbps 'throughput', 20 Gbps 'capacity', or 14.88 Mpps 'rate')
•DC power input support: Terminal block for 42V to 56V DC input
•Power consumption max 20W (excluding PoE output)
•RJ45 serial console port
•Operating temperature range depending on power input and load: ◦AC input up to 150W: -25C to 45C
â—¦AC input up to 100W: -25C to 55C
â—¦DC input: -25C to 60C

Advanced Switching Technology for the Masses

Build and expand your network with Ubiquiti Networks® EdgeSwitchTM, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss
