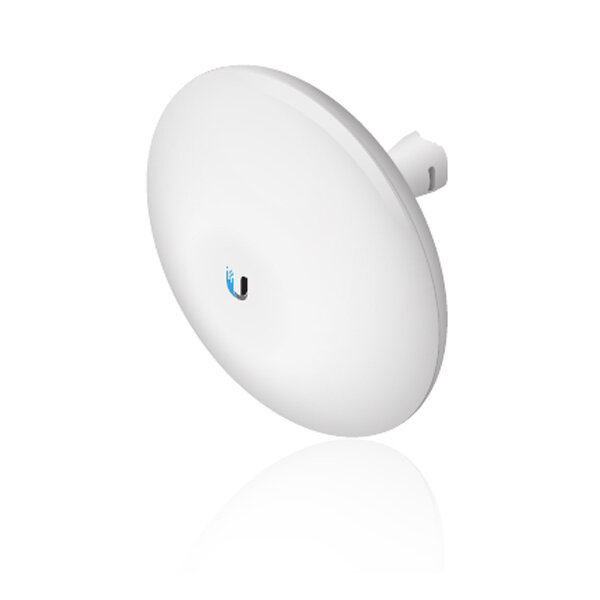

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Innovative Mechanical Design

• Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
• Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.
• Easy removal The antenna feed can be detached with the push of a button.

Corrosion Resistance

• Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.

SPECIFICATION

Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
Operating Frequency: 2412 - 2472 MHz Worldwide
Net. Interface: (1) 10/100/1000 Ethernet Port
Gain: 13 dBi
Polarization: Dual Linear
Max. Power Consumption: 8.5W
Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92')
Weight: 0.530 kg (1.17 lb)
Power Supply (PoE): 24V, 0.5A PoE
Mounting: Pole-Mount (Kit Included), Wall-Mount
Operating Temperature: -40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing
