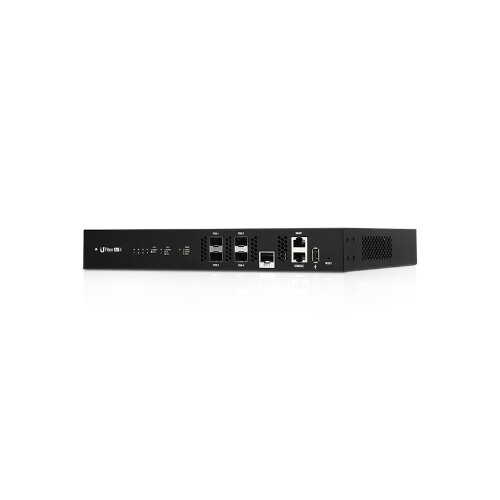

Ubiquiti 256 Client Capacity GPON OLT with UNMS Management System

4-Port GPON Optical Line Terminal
4 Gigabit Passive Optical Network Ports
Supports up to 512 Clients (128 per PON Port)
Up to 2.488 Gbps TX and 1.244 Gbps RX
One 1G/10G SFP+ Ethernet Ports
Flexible Layer 2/3 Management Features
Ethernet port for management
Console serial port for management
24V DC Input Option (Redundant or Stand-Alone)


Dimensions
299.8 X 258.95 X 42.55 mm
Weight
1930g (without hangers)
2130g (with hangers)
Enclosure Characteristics
SGCC steel

HARDWARE
Processor - MIPS 1004Kc 880 Mhz dual core
Memory- 512 Mbyte DDR3, 512M Byte NAND
Management Interface
(1) Ethernet out-of-band management
(1) Ethernet in-band management
(1) RJ45 Serial Console Port
Networking Interface
(4) GPON OLT SFP
(1) 10 Gbps SFP+
Buttons (1) Reset, Press 5 seconds - Reset to default
LEDs/Display (1) Power: Blue/White
Blinking Blue: reset to default
Steady Blue: system is booting
Steady White: service is ready
(4) GPON OLT SFP
Steady/Blinking white : GPON link/activity
(1) SFP+ Ethernet: White(10G) Green(1G), steady on after link is up, blinking while activity
(1) Ethernet RJ45 Out-of-band Management: Green(1G), steady on after link is up, blinking while activity

Power Method 100-240VAC/50-60 Hz universal input / 25VDC
Power Supply AC/DC internal 56W DC / DC barrel jack connector
Supported Voltage Range AC input: 100 to 240 VAC / 25 to 16VDC
Max. Power Consumption 35W (Excluding SFP modules)
Operating Temperature -10 to 45°C (14 to 113°F)
Operating Humidity 10% to 90% Non-Condensing
SOFTWARE
Mode OLT 2/3 Ethertnet Switch and GPON Core
Advanced QoS Support 8 priority queues per user port and traffic classification
Concurrent Clients 512 ONUs/ONTs registered
Ubiquiti Specific Features UBNT Discovery and UBNT mcagent
Minimum Software Requirements Any Modern Web Browser
