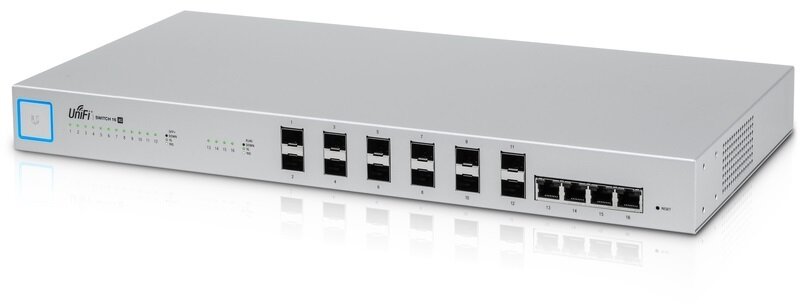

Build and expand your network with Ubiquiti Networks® UniFi® Switch 16 XG, part of the UniFi Enterprise System. The US‑16‑XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network. The US‑16‑XG offers an extensive suite of advanced Layer-2 switching features and protocols.

10G AGGREGATION SWITCH FOR ENTERPRISE NETWORKS
Build and expand your network with Ubiquiti Networks® UniFi® Switch 16 XG, part of the UniFi Enterprise System. The US‑16‑XG is a fully managed, 16‑port, 10G fiber switch that enhances network capacity by providing high‑bandwidth aggregation connectivity to multiple switches in your network.

MULTI-SITE MANAGEMENT
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

10G HI-CAPACITY LINKS
The US‑16‑XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For CAT 6/5e cable connectivity, the US‑16‑XG offers four 10G RJ45 ports.

SEAMLESS INTEGRATION
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.

SWITCH CONFIGURATION
You can access any managed UniFi Switch through the UniFi controller to configure a variety of features:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface

Features:

• (12) 1G/10G SFP+ Ports
• (4) 1G/10G RJ45 Ports
